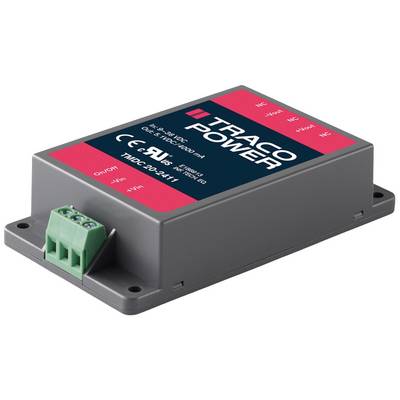

TracoPower DC/DC converter (module) 48 V DC 5.1 V DC 4 A 20 W No. of outputs: 1 x Content 5 pc(s)
Item no:
Datasheet (PDF)
Technical specifications
- Type
TMDC 20-4811
- Nominal voltage
48 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Output voltages
5.1 V DC
- Max. output current
4 A
- Output current (max.) - rounded
4 A
- Efficiency (max.)
90 %
20 W
- Insulation voltage
2500 V DC
- Connection
Screw terminal
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
90 °C
- Dim
(L x W x H) 54 x 96 x 23.3 mm
- Height
23.3 mm
- Length
54 mm
- Width
96 mm
- Content
5 pc(s)
- Output voltage (max.)
5.1 V DC
- Output voltage (min.)
5.1 V DC
- Weight
107 g
- Product type
DC/DC converter (module)
Documents & Downloads
Datasheet
Datasheet 2791922 TracoPower DC/DC converter (module) 48 V DC 5.1 V DC 4 A 20 W No. of outputs: 1 x Content 5 pc(s)
Datasheet 2791922 TracoPower DC/DC converter (module) 48 V DC 5.1 V DC 4 A 20 W No. of outputs: 1 x Content 5 pc(s)
User & Safety Instructions
User & Safety Instructions 2791922 TracoPower DC/DC converter (module) 48 V DC 5.1 V DC 4 A 20 W No. of outputs: 1 x Content 5 pc(s)
Warranty Terms
Warranty Terms 2791922 TracoPower DC/DC converter (module) 48 V DC 5.1 V DC 4 A 20 W No. of outputs: 1 x Content 5 pc(s)
Description
Vollverkapseltes, flat plastic casing, connection and fixing through screw terminal, 4:1 input voltage range. E/A-insulation 2500 V/DC, input filter according to EN 55022, class A, external on/off.
