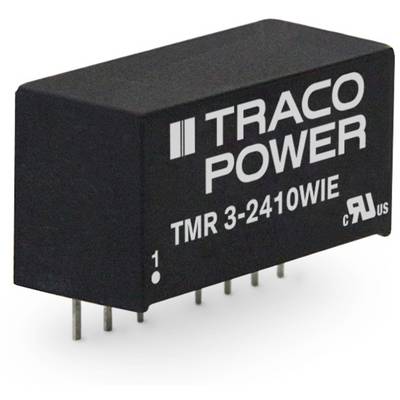

TracoPower DC/DC converter (print) 12 V DC 15 V DC 200 mA 3 W No. of outputs: 1 x Content 10 pc(s)
Item no:
Datasheet (PDF)
Total (€ 15.13 / piece)
€ 151.25
plus VAT.
Technical specifications
- Product type
DC/DC converter (print)
- Type
TMR 3-1213WIE
- Nominal voltage
12 V DC
- Min. input voltage
4.5 V DC
- Input voltage (max.)
18 V DC
- No. of outputs
1 x
- Output voltages
15 V DC
- Max. output current
200 mA
- Output current (max.) - rounded
200 mA
- Efficiency (max.)
81 %
3 W
- Insulation voltage
1500 V DC
- Enclosure
SIP 8
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 21.8 x 14.4 x 9.3 mm
- Height
9.3 mm
- Length
21.8 mm
- Width
14.4 mm
- Output voltage (max.)
15 V DC
- Output voltage (min.)
15 V DC
- Weight
4.8 g
- Content
10 pc(s)
Documents & Downloads
Datasheet
Datasheet 2792024 TracoPower DC/DC converter (print) 12 V DC 15 V DC 200 mA 3 W No. of outputs: 1 x Content 10 pc(s)
Datasheet 2792024 TracoPower DC/DC converter (print) 12 V DC 15 V DC 200 mA 3 W No. of outputs: 1 x Content 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2792024 TracoPower DC/DC converter (print) 12 V DC 15 V DC 200 mA 3 W No. of outputs: 1 x Content 10 pc(s)
Warranty Terms
Warranty Terms 2792024 TracoPower DC/DC converter (print) 12 V DC 15 V DC 200 mA 3 W No. of outputs: 1 x Content 10 pc(s)
Description
4:1 input range, compact housing, SIP8-E/A-insulation 1500 V/DC, external on/off, Economy Type (base load 25%).
