Tremba HMA-3027z.001-24VDC,100% Solenoid attracting 0.2 N 36 N 24 V DC 10 W

  • Item no.: 503767
  • Manufacturer no.: 830040
  • EAN: 2050000906909

Clamp magnet with locking feature The direction of movement of the plunger is determined by the pole direction of control. The core is held deenergized in the status of tension. The movement of deployment is supported by a pressure or retaining sprin…

  • Warranty: 24 months
  • Manufacturer: Tremba
  • Item no.: 503767
  • Manufacturer no.: 830040
  • EAN: 2050000906909

Clamp magnet with locking feature The direction of movement of the plunger is determined by the pole direction of control. The core is held deenergized in the status of tension. The movement of deployment is supported by a pressure or retaining sprin…

  • Warranty: 24 months
  • Manufacturer: Tremba
Type HMA-3027z.001-24VDC,100%
Type attracting
Connection Open end cable
Cable length 21.00 cm
Nominal voltage 24 V DC
Nominal lift 20 mm
Power
10 W
Initial force 0.2 N
Peak force 36 N
Holding force 10 N
Weight 235 g
Thread size M3
Length 69.3 mm
Width 30.2 mm
Height 29.5 mm

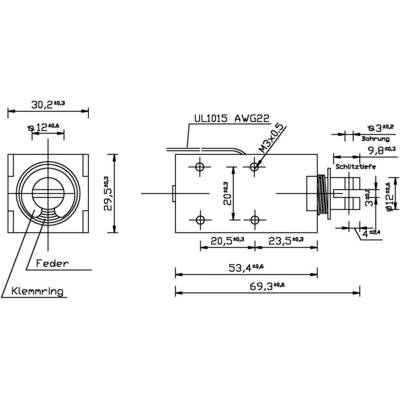

Type drawing
Nominal voltage (details) 24 V DC
Type HMA-3027z001-24VDC, 100%
Mounting type M3
Nominal power 10 W
Product type Solenoid

Technical data

Type HMA-3027z.001-24VDC,100%
Type attracting
Connection Open end cable
Cable length 21.00 cm
Nominal voltage 24 V DC
Nominal lift 20 mm
Power
10 W
Initial force 0.2 N
Peak force 36 N
Holding force 10 N
