TRU COMPONENTS 1564896 LED strip open cable ends 12 V 168 mm Red 1 pc(s)
EAN:
Part number:
Item no:
Product type
LED strip
Connectors (LED strips)
open cable ends
LED strip features
Flexible
Self-adhesive
Can be shortened
Colour
Red
Use
Inside
Datasheet (PDF)
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 32.44
€ 5.45
3
1 M = € 30.65
€ 5.15
5
1 M = € 29.94
€ 5.03
Volume discounts vary depending on the seller
You save € 0.00
Total (1 m = € 32.44)
€ 5.45
plus VAT.
Highlights & Details
LED strip open cable ends 12 V 16.8 cm Red 150446
- Self-adhesive with sticking area
Our service for you
Technical specifications
- Product type
LED strip
- Connectors (LED strips)
open cable ends
- LED strip features
Flexible
Self-adhesive
Can be shortened
- Colour
Red
- Use
Inside
- Wavelength
624 nm
- Radiation angle
110°
- Light intensity I(V)
600 mcd
- Operating voltage
12 V
- Dim
(L x W) 168 mm x 10 mm
- Power consumption
1.3 W
- LEDs
12
- LED number per unit
3
- Width
10 mm
- Length
168 mm
- Unit length
4.2 cm
n.rel.
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1564896 TRU COMPONENTS 1564896 LED strip open cable ends 12 V 168 mm Red 1 pc(s)
Description

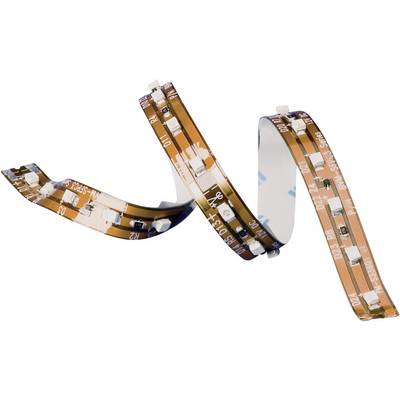

Super-bright, colour-group selected PLCC-SMD LEDs are mounted on a highly flexible, 10-mm wide conductor strip. Several LED strips are naturally cascadable. Thanks to the self-adhesive rear side, the LED strips can be used in many applications. Very flexible, tight radii possible. The operating voltage is fed via the existing solder points.
Design: with pre-resistance - as such can be dimmed by varying the operating voltage.
Applications: Illuminated letters, background lighting, marking display, illumination or effect and step lighting.
Design: with pre-resistance - as such can be dimmed by varying the operating voltage.
Applications: Illuminated letters, background lighting, marking display, illumination or effect and step lighting.
Hints
This product is not suitable for room illumination, and it is for decorative lighting.
