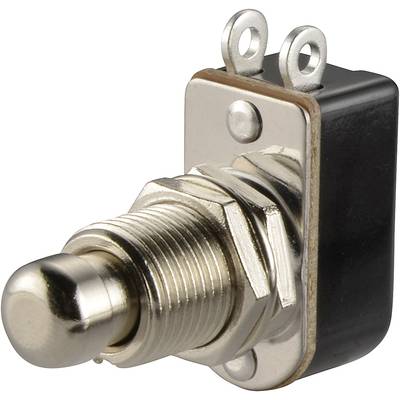

Metal push-button switch with mounting thread, suitable for electrical applications and installations.

'Drawing of an R13-85 switch with dimensions in mm: width 31.4, height 25.3, depth 13. Labelling shows "OFF" and "ON" positions.'

1/2

Packaging type

Piece

Product type

Pushbutton

Lighting type

None

Switch position

1 x Off/(On)

Contact type

1 maker

Datasheet (PDF)

Fast track dispatch on Wed, 19 Aug

787 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.96 / piece)

€ 2.96

plus VAT.

Report legal concerns

Highlights & Details

Metal pushbutton 250 V AC 3 A

Our service for you

Technical specifications

Packaging type: Piece

Product type: Pushbutton

Switch/button features: Protruding

Casing/button colour: Metal

Functions: momentary

Lighting type: None

Switch position: 1 x Off/(On)

Contact type: 1 maker

Material: Nickel

Connection: Solder pins

Contact resistance: 50 mΩ

Switching voltage: 250 V AC

Switching current (max.): 3 A

Dielectric strength: 1500 V/AC/60 s

Recess diameter: 12.2 mm

Content: 1 pc(s)

Insulation resistance: (500 V/DC) ≥ 100 MΩ

RoHS-compliant: Yes

Board thickness (max.): 4 mm

Type: TC-R13-85A-05

Documents & Downloads

Datasheet

Datasheet 1587726 TRU COMPONENTS 1587726 TC-R13-85A-05 Pushbutton 250 V AC 3 A 1 x Off/(On) momentary 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1587726 TRU COMPONENTS 1587726 TC-R13-85A-05 Pushbutton 250 V AC 3 A 1 x Off/(On) momentary 1 pc(s)

Description

Button and upper section out of nickel with brass coating, phenolic resin baseplate, stainless steel frame. With guide groove for front panel mounting.
