Vogel's PFD 8522 Monitor desk mount 1 Display(s) 25,4 cm (10") - 66,0 cm (26") Silver Tiltable, Swivelling, Swivelling
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
14-day return policy included
Vogel's monitor table mount 38 - 68.6 cm (15" - 27") PFD8522
Highlights & Details
- Holder type: Tiltable, Swivelling, SwivellingSupports VESA standards up toSuitable for displays sized (range): 25,4 cm (10") - 66,0 cm (26")Load capacity (max.) 13 kg

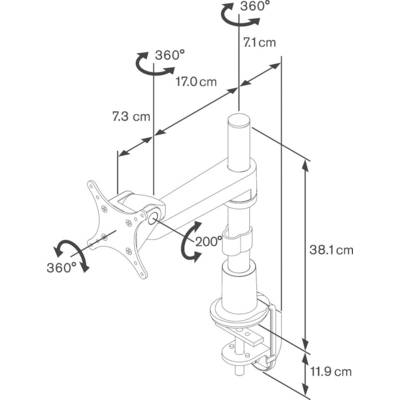

Technical specifications
- Extendable up to 24.3 cm
- Product type
Monitor desk mount
- Suitable for
25,4 cm (10") - 66,0 cm (26")
- Add-on displays
1 Display(s)
- Holder type
Tiltable
Swivelling
Swivelling
No
- Max. load capacity
13 kg
No
75 x 75 mm
100 x 100 mm
- Rotation
360°
- Max. table thickness
119 mm
- Tilt range (bottom)
-100°
- Tilt range (top)
+100°
- Min. distance to floor/ceiling
12 cm
- Max. distance to floor/ceiling
36 cm
- Swivel range (left)
180°
- Swivel range (right)
180°
- Distance to wall (min.)
7.1 cm
- Distance to wall (max.)
31.4 cm
- Factory colour
Silver
- Weight
3.433
- Suitable for
25,4 cm (10")
25,7 cm (10,1")
26,7 cm (10,5")
27,9 cm (11")
29,5 cm (11,6")
30,5 cm (12")
30,7 cm (12,1")
31,0 cm (12,2")
31,8 cm (12,5")
32,8 cm (12,9")
Show more
- Product type description
Zubehör TFT/LCD-TV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 994527 Vogel's PFD 8522 Monitor desk mount 1 Display(s) 25,4 cm (10") - 66,0 cm (26") Silver Tiltable, Swivelling, Swivelling
Datasheet 994527 Vogel's PFD 8522 Monitor desk mount 1 Display(s) 25,4 cm (10") - 66,0 cm (26") Silver Tiltable, Swivelling, Swivelling
User & Safety Instructions
User & Safety Instructions 994527 Vogel's PFD 8522 Monitor desk mount 1 Display(s) 25,4 cm (10") - 66,0 cm (26") Silver Tiltable, Swivelling, Swivelling
Description

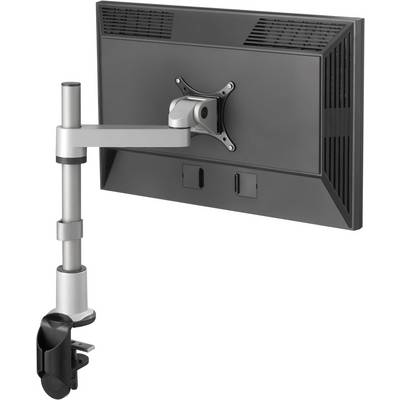

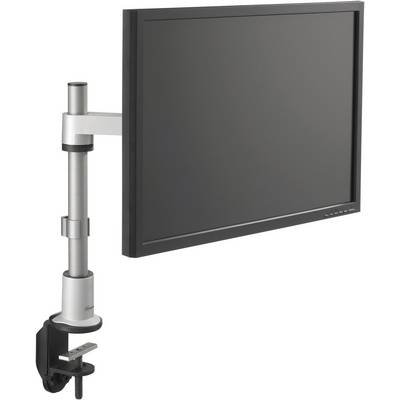

The Vogel's PFD 8522 swivel arm monitor has everything was needed to comfortably and neatly set up your monitor. Adjust the height and move and rotate the monitor with one finger. Vogel's PFD 8522 model is equipped with 2 pivot points. With the adjustable bearings you can move the holder easily.
Flexmount allows you to install the desk holder in 6 different ways. So you can be sure that Vogel's desk holder fits on any desk without having to buy additional accessories.

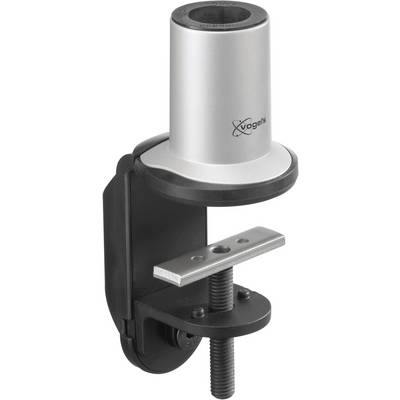

The supplied bracket allows the arm to be attached with clamp, cable hole holder or drill screw holder, wall bracket.
This text is machine translated.
Flexmount allows you to install the desk holder in 6 different ways. So you can be sure that Vogel's desk holder fits on any desk without having to buy additional accessories.
The supplied bracket allows the arm to be attached with clamp, cable hole holder or drill screw holder, wall bracket.
This text is machine translated.
Features
- 6-in-1 Mounting Solution

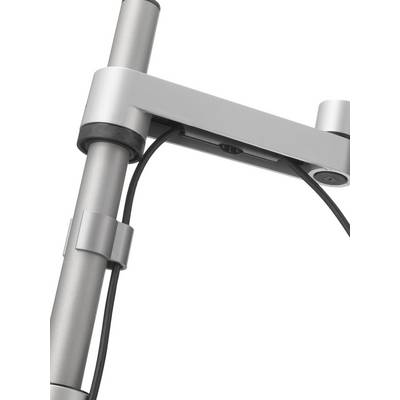

- Adjustable bearings: Solid 3-point cable routing

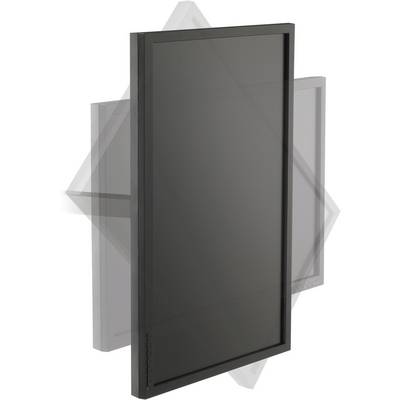

- Monitor rotation
- Altitude above the table surface: 119 mm
- Range: 243mm
- Adjustment: manual height adjustment
- Material: aluminum pressure die-cast
- 200° inclination
- Pivot 90°
- Swivel arm length 243 mm
- The table thickness (mm) 119
