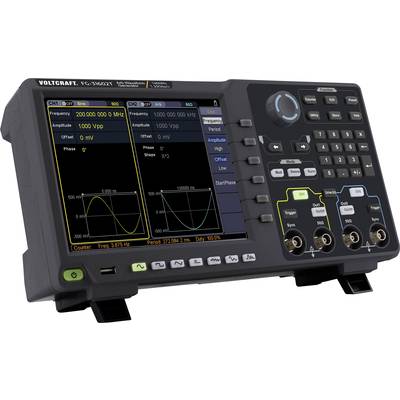

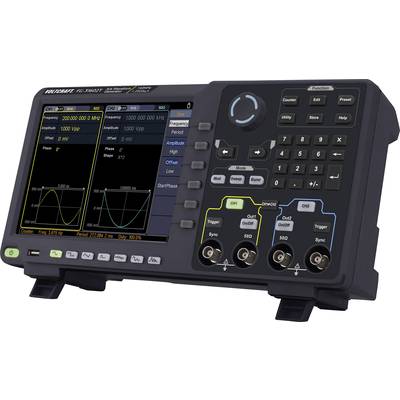

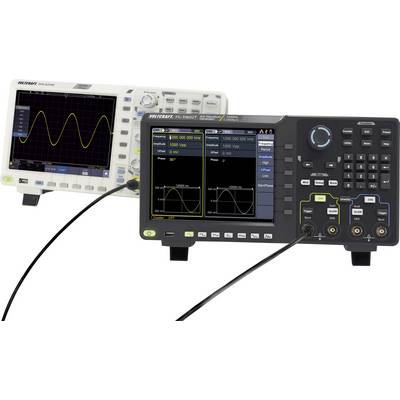

FG-31602T 160 MHz Two-channel Touchscreen Arbitrary Waveform Generator
FG-30000T series two-channel touchscreen arbitrary function generator.
This arbitrary function generator features direct digital signal generation (DDS) technology to produce stable, accurate and clean output signals with a bandwidth of 80 MHz, real-time sampling of 1.25 GS/s ( max) and a frequency resolution of 1μHz.
The generator covers 6 basic waveform output groups (sine, square, ramp, noise and harmonics) as well as 152 built-in arbitrary waveforms (1μHz - 50MHz) with a 14-bit vertical resolution. Moreover, it comes with a wide range of modulation options comprising AM, FM, FSK, 3FSK, PSK, OSK, ASK, BPSK, PWM, sweep, and burst.
An 8"" 800 x 600 TFT LCD touchscreen colour display shows all waveform parameters and settings on a user-friendly GUI.
Highlights & Details
- 160 MHz
- Two channels
- 14 bit vertical resolution
- 1.25GS/s sample rate, 1μHz frequency resolution
- Arbitrary waveform lengths of up to 1m
- 20 x 32 cm (8") 800 x 600 LCD touchscreen
- Advanced DDS technology, 250MHz peak frequency output

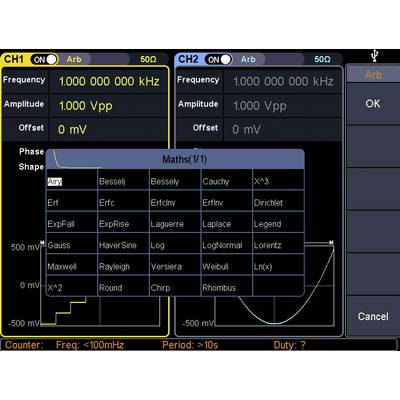

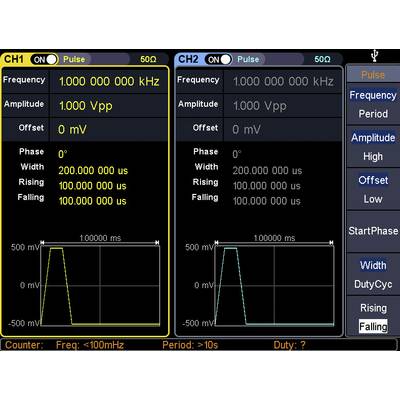

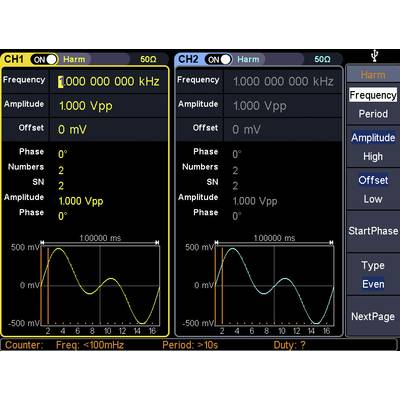

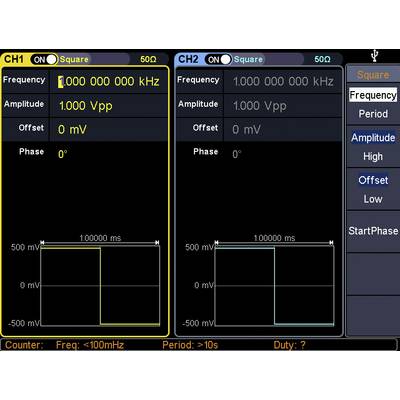

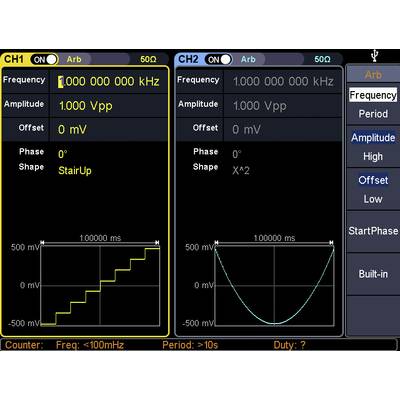

- Waveform output: 6 basic waveform groups: sine, square, pulse, ramp, noise and harmonic, 152 built-in arbitrary waveform groups

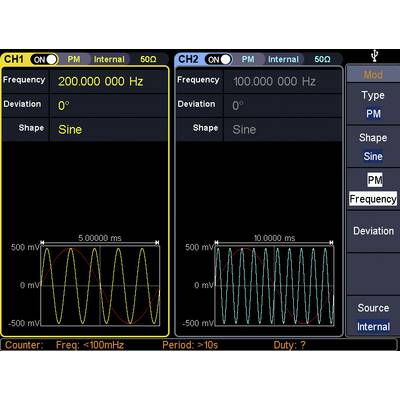

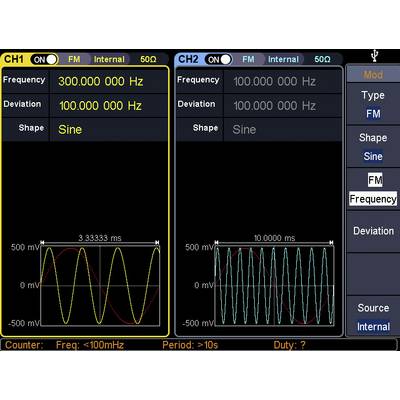

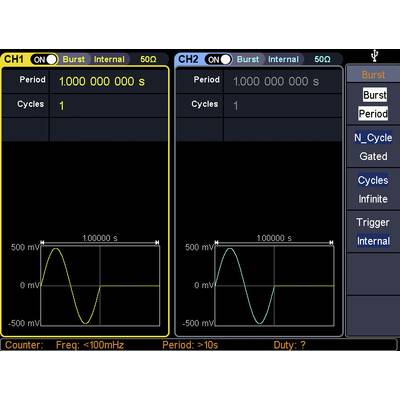

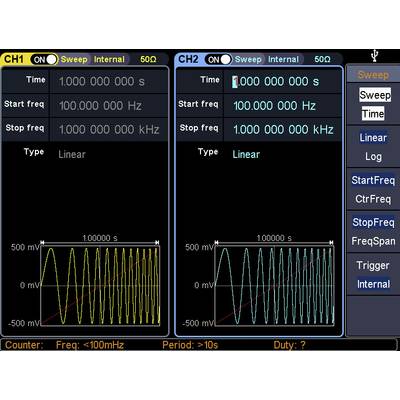

- Wide range of modulation options: AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, sweep, and burst
- Built-in high-accuracy frequency counter covering100mHz to 200MHz
- Supports SCPI
Facts
- 6 basic waveform groups: sine, square, pulse, ramp, noise and harmonics, and 152 built-in arbitrary waveform groups
- Wide range of modulation options: AM, FM, PM, FSK, 3FSK, PSK, OSK, ASK, BPSK, PWM, Sweep, Burst
- Frequency range: 100-200 MHz
- Frequency counter resolution: 7 digits
- Waveform length: 2 pts to 1 Mpts
- Communication interface: USB Host, USB Device, LAN
- Input: Counter, external modulation, external trigger, external reference clock

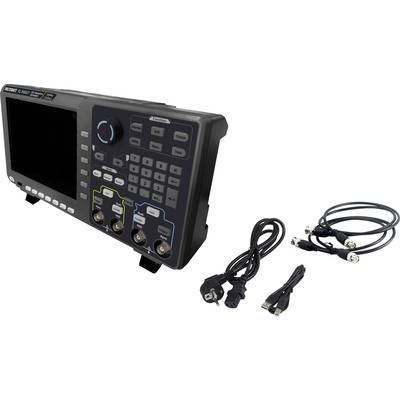

Delivery
- Function generator
- Power cable
- 2x Q9 BNC cable
- CD (Software, User manual (EN) )
- Safety cheat sheet
