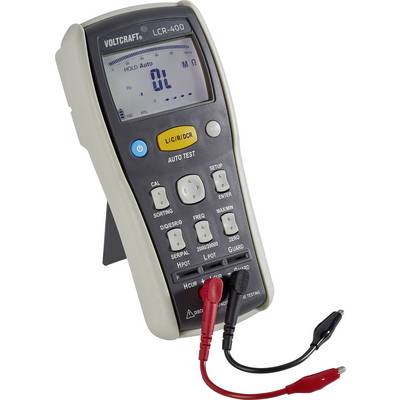

VOLTCRAFT LCR-400 RLC circuit Digital CAT I Display (counts): 20000
High-accuracy resistance, capacitance and inductance meter. Sort and pick mode enables qualitative preselection of components during development, production and MPO. Features automatic component recognition which allows using the device without prior…
High-accuracy resistance, capacitance and inductance meter. Sort and pick mode enables qualitative preselection of components during development, production and MPO. Features automatic component recognition which allows using the device without prior…
LCR-400 Meter
High-accuracy resistance, capacitance and inductance meter. Sort and pick mode enables qualitative preselection of components during development, production and MPO. Features automatic component recognition which allows using the device without prior knowledge of component specs.
Highlights & Details
- USB interface
- Up to 100kHz sampling rate
- Inductance readings up to 20kH
- Capacitance readings up to 20mF
- Resistance readings up to 200MΩ
- 0.2% basic accuracy
- Automated component recognition
- Large 20.000 counts display
Facts
- Automated component recognition (LCR)
- Enables sorting by reference reading, user-defined reference values or by tolerance pre-sets
- Reference readings (deviation in %)
- Displays q-factor, phase angle and loss factor
- Data Hold
- Hold function
- Auto range
- Manual component selection
- Manual switch between serial and parallel circuits
- 2-wire sensing
- Accurate 4T sensing
- Accurate 5-wire tweezer probe sensing
- Dual display
- Mains power option
- Auto display lighting
- 2 input options: built-in clamps, test lead jacks
- Input calibration ensures accuracy
- Auto switch-off
- USB interface.
Delivery
- 2x alligator clip test lead

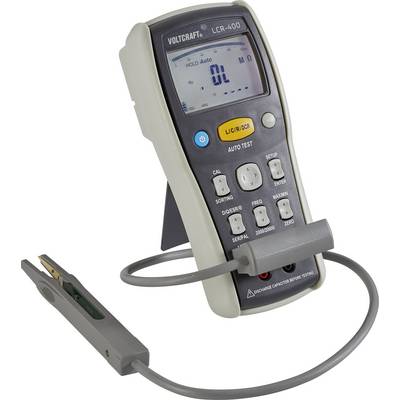

- 1x Kelvin tweezer probe
- Zero connector
- Magnetic tape
- Holster
- Batteries
- Power supply unit
- USB cable
- Software on CD
- User manual.
