VOLTCRAFT LPS1305 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 5 A 150 W No. of outputs 1 x
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Highlights & Details
LPS1305 laboratory linear power supply
- No. of outputs 1 x
- 0 - 30 V DC
- 0 - 5 A
- 150 W
- Residual ripple
- 5 mV
- Type (misc.): Desktop
- Linear
Technical specifications
- Type
LPS1305
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
150 W
- Technology
Linear regulated PSU
- Dim
(L x W x H) 305 x 130 x 160 mm
Manufacturer's standards (no certificate)
- Input voltage
230 V AC
- Weight
5.1 kg
- Connections
4 mm safety sockets
- Type
Desktop
- Output
4 mm socket
- Output voltage (max.)
30 V DC
- Output voltage (min.)
0 V DC
- Max. output current
5 A
- Output current (min.)
0 A
- Inputs
IEC C14 connector

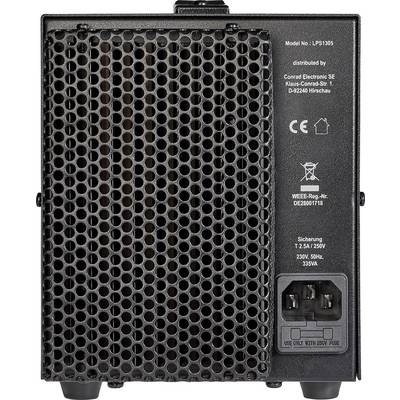

- Mains supply
IEC 320 C14
- Type
Linear
- Width
130 mm
- Height
160 mm
- Length
305 mm
- Residual ripple
5 mV
Documents & Downloads
Datasheet
Datasheet 1380494 VOLTCRAFT LPS1305 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 5 A 150 W No. of outputs 1 x
User & Safety Instructions
User & Safety Instructions 1380494 VOLTCRAFT LPS1305 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 5 A 150 W No. of outputs 1 x
Conformity certificate
Conformity certificate 1380494 VOLTCRAFT LPS1305 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 5 A 150 W No. of outputs 1 x
Warranty Terms
Warranty Terms 1380494 VOLTCRAFT LPS1305 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 5 A 150 W No. of outputs 1 x
Description
Electronically regulated power supply with separate voltage and current selector. Adjustable current output limit (no shorting jumper required). LPS products feature active cooling.
This text is machine translated.
This text is machine translated.

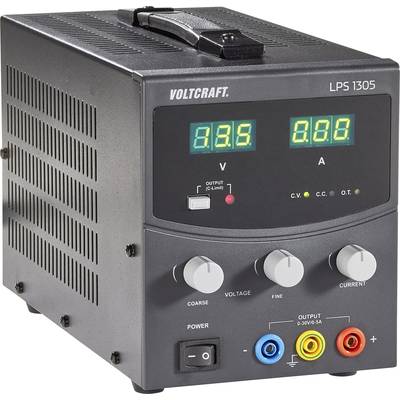

Features
- High readability LED voltage and current indicastors
- Voltage and current output selector (including fine-adjust)
- Overload and short circuit protection
- LED display for CV, CC and OH.
Hints
Power cable not included.
