VOLTCRAFT SLX-300 SLX-300 PV meter 0 - 2000 W/m²
EAN:
Part number:
Item no:
Highlights & Details

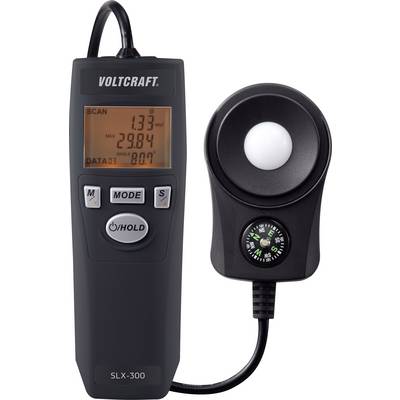

VOLTCRAFT SLX-300 PV meter 0 - 2000 W/m²
- Solar power testing at different orientations and angles
- 4-digit auto-range measurement
- 20-point memory, auto-record and data-recall
- Readings displayed in W/m² or BTU/ft²
- Automatic transmittance measurements
- Auto-backlit LCD 3-line display
Technical specifications
- Dim
(L x W x H) 29 x 49 x 140 mm
- Height
140 mm
- Length
29 mm
- Width
49 mm
- Illuminance reading range
0 - 2000 W/m²
Manufacturer's standards (no certificate)
- Display
LCD
- Illuminance reading range (max.)
2000 W/m²
- Illuminance reading range (min.)
0 W/m²
- Illuminance reading accuracy
5 %
- Weight
202 g
- Plastic free packaging
Plastic-free packaging
- Product type
PV meter
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1970436 VOLTCRAFT SLX-300 SLX-300 PV meter 0 - 2000 W/m²
Conformity certificate
Conformity certificate 1970436 VOLTCRAFT SLX-300 SLX-300 PV meter 0 - 2000 W/m²
Warranty Terms
Warranty Terms 1970436 VOLTCRAFT SLX-300 SLX-300 PV meter 0 - 2000 W/m²
Description
Voltcraft SLX-300 PV meters measure the solar output and use it to determine the overall power, efficiency and correct orientation of solar energy systems.
SLX-300 PV meters are suitable for solar power and transmittance values of up to 2000 W/m², or 634 BTU (ft² x h). The product provides fast and reliable readings, ideal for tasks in meteorology, agriculture, physics, the optical industry, as well as measurements related to the placement of solar panels or solar water heaters, the solar transmittance of windows and solar power plants as a whole.
SLX-300 PV meters are suitable for solar power and transmittance values of up to 2000 W/m², or 634 BTU (ft² x h). The product provides fast and reliable readings, ideal for tasks in meteorology, agriculture, physics, the optical industry, as well as measurements related to the placement of solar panels or solar water heaters, the solar transmittance of windows and solar power plants as a whole.
Features
- Min/Max/Avg readings
- Data hold
- Automated backlighting
- Compass function
- Tripod mount
- Sensor/Probe cable length 175 cm
Scope of delivery
- PV meter
- 1x 9V battery
- Transport case
- User manual
