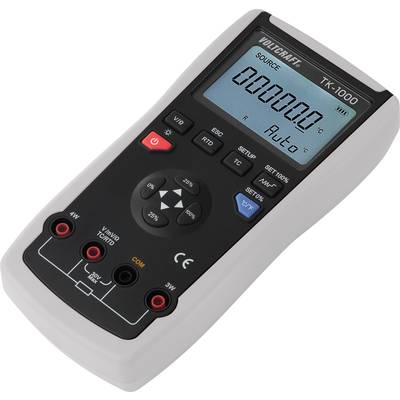

Multimeter TK-1000 with digital display shows measurement values and options. Rotary dial and buttons for selection and settings.

A remote control with its back panel open, revealing an inserted alkaline battery.

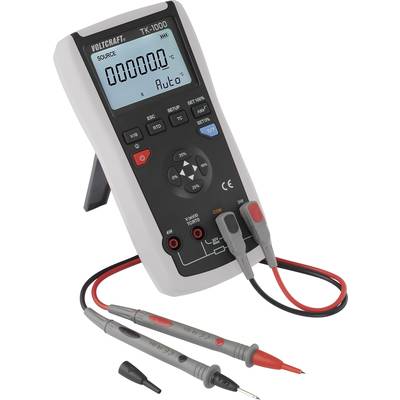

A digital multimeter is standing on a stand, displaying 'Auto' on the screen and has measuring cables with red and black tips.

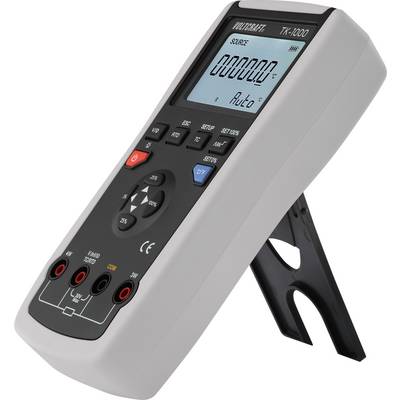

A digital multimeter in a plastic casing with a display and multiple buttons for measuring electrical quantities.

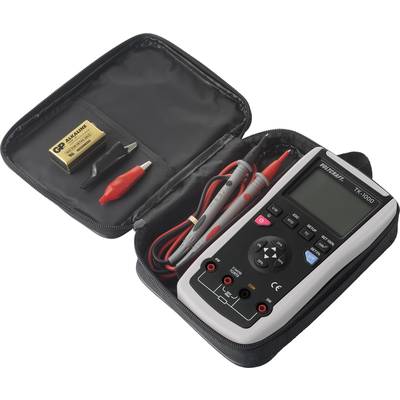

Measuring device in an open bag with batteries, cables, and accessories.

A digital multimeter with black and red test leads lies beside a black carrying case.

Digital display of a thermometer in a laboratory environment. A sensor measures the temperature at 22.98 °C in a liquid.

1/9

Our service for you

Datasheet (PDF)

Fast track dispatch on Wed, 26 Aug

26 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 197.47 / piece)

€ 197.47

plus VAT.

Report legal concerns

Highlights & Details

Voltcraft TK-1000 Temperature Calibrator

Up to 0.05 % output and measurement accuracy
Measures and simulates 10 different types of thermocouples
Measures and simulates 4 different types of resistance temperature detector (RTD)
Auto stepping and ramping output for fast linearity detection
LCD backlight brightness control for easy reading of the measurement data
Display count: 200000
Save frequently-used settings for convenience

Technical specifications

Dim: (L x W x H) 47 x 96 x 193 mm

Weight: 370 g

Height: 193 mm

Length: 47 mm

Width: 96 mm

: Manufacturer's standards (no certificate)

Unit of measurement: Temperature
Voltage

Power supply: 1 x 9 V PP3 battery (included)

Operating voltage: 9 V DC

Plastic free packaging: Plastic-free packaging

Product type: Calibrator

Documents & Downloads

Datasheet

Datasheet 2353912 VOLTCRAFT TK-1000 Calibrator Temperature, Voltage

User & Safety Instructions

User & Safety Instructions 2353912 VOLTCRAFT TK-1000 Calibrator Temperature, Voltage

Warranty Terms

Warranty Terms 2353912 VOLTCRAFT TK-1000 Calibrator Temperature, Voltage

Description

Exact calibration
The Voltcraft TK-1000 is the perfect all-round device also for professional measurement applications. The calibrator measures and simulates nine different types of thermocouples (J, K, T, E, R, S, B, N, Wre325, Wre526) and four different types of resistance temperature sensors (RTD type: Pt100, Pt10, CU50, Cu100). Step and ramp functions are available for fast linearity detection. In addition, the TK-1000 is characterized by its high output and measurement accuracy in up to 0.05% steps.

Comfortable working
The Voltcraft calibrator has other useful features for easy and pleasant working: In this way, frequently used settings can be saved and the background lighting of the LC display can be adjusted individually depending on the lighting situation at the workplace. The display of the temperature values, which can be displayed in °C as well as in °F, is also variable. If the device is not to be used for a longer period of time, it switches off automatically. And if the display indicates a weak battery, it can be replaced easily and conveniently. Everything is included in the delivery, which was needed for the immediate use: Besides the calibrator a pair of test leads, an alligator clip, a 9V battery, the user manual as well as a practical carrying bag.
