VOLTCRAFT V-Charge Eco Quad Scale model battery charger 12 V, 32 V 5 A LiPolymer
EAN:
Part number:
Item no:
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
14-day return policy included
Highlights & Details

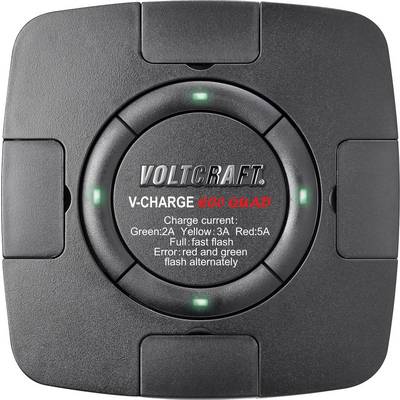

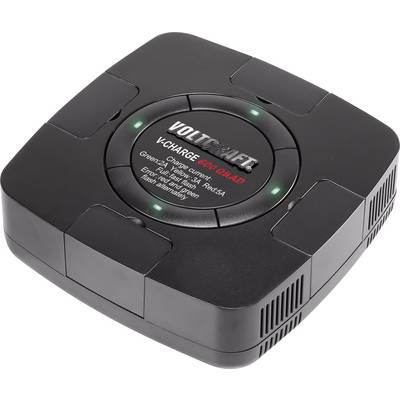

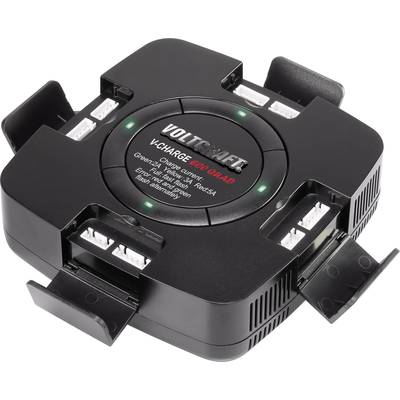

“V-Charge Eco Quad Lipo” charger
- Charging 4 rechargeable batteries at the same time
- Perfectly suitable for Race copter pilots.
- 4x LED status lights
Technical specifications
- Product type
Scale model battery charger
- Operating voltage
12 V
32 V
- Matching rechargeable battery
LiPolymer
- Max. charging capacity
200 W
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (max.)
4
- Charging current (max.)
5 A
- Charging slots
4
- Connector system
XH
- Dim
(L x W x H) 128 x 128 x 43.5 mm
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (min.)
3
- Weight
280 g
- Manufacturer part #
1590606
- Width
128 mm
- Height
43.5 mm
- Length
128 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1590606 VOLTCRAFT V-Charge Eco Quad Scale model battery charger 12 V, 32 V 5 A LiPolymer
Information
Information 1590606 VOLTCRAFT V-Charge Eco Quad Scale model battery charger 12 V, 32 V 5 A LiPolymer
Conformity certificate
Conformity certificate 1590606 VOLTCRAFT V-Charge Eco Quad Scale model battery charger 12 V, 32 V 5 A LiPolymer
Warranty Terms
Warranty Terms 1590606 VOLTCRAFT V-Charge Eco Quad Scale model battery charger 12 V, 32 V 5 A LiPolymer
Description
Practical charger for charging up to four LiPo rechargeable batteries simultaneously. Thus perfectly suitable for Race copter pilots, who want to have your batteries ready for use again as soon as possible.
This “V-CHARGE ECO Quad Lipo” charger has four independent charging channels, each of which features a coloured LED indicator and a control button.
The charger is designed to charge LiPo rechargeable batteries with 3 (rated voltage = 11.1 V) or 4 (rated voltage = 14.8 V) cells.
The charging current for each channel can be set to 2 A, 3 A or 5 A. The maximum total charging power is 200 W (shared between the four channels). Each channel has a maximum charging power of 84 W.
The charger features a built-in balancer that monitors the voltage of each battery cell and ensures that all cells have the same voltage.
The charger features a DC input (11–32 V/DC) and can be powered with a suitable DC power adapter, a car lead-acid battery, or a suitably powerful LiPo rechargeable battery.
This text is machine translated.
This “V-CHARGE ECO Quad Lipo” charger has four independent charging channels, each of which features a coloured LED indicator and a control button.
The charger is designed to charge LiPo rechargeable batteries with 3 (rated voltage = 11.1 V) or 4 (rated voltage = 14.8 V) cells.
The charging current for each channel can be set to 2 A, 3 A or 5 A. The maximum total charging power is 200 W (shared between the four channels). Each channel has a maximum charging power of 84 W.
The charger features a built-in balancer that monitors the voltage of each battery cell and ensures that all cells have the same voltage.
The charger features a DC input (11–32 V/DC) and can be powered with a suitable DC power adapter, a car lead-acid battery, or a suitably powerful LiPo rechargeable battery.
This text is machine translated.
Features
- 3 Input modes
- Balancer-function
- Built-in fan
- Unique dust-protection design.
Scope of delivery
- Battery charger
- XT-30 charging cable
- Instructions on CD only DE and GB.
