VOLTCRAFT VC-450 E Handheld multimeter Digital Water-jet proof (IP65) CAT III 1000 V, CAT IV 600 V Display (counts): 60

  • Item no.: 1500207
  • Manufacturer no.: VC-450 E
  • EAN: 4016139142005

This text is machine translated.Extremely robust multimeter The VOLTCRAFT VC-450 E multimeter is ideally suited for electricians, assemblers and service technicians to work in harsh environments. It comes with a wide range of features that make this …

  • Item no.: 1500207
  • Manufacturer no.: VC-450 E
  • EAN: 4016139142005

This text is machine translated.Extremely robust multimeter The VOLTCRAFT VC-450 E multimeter is ideally suited for electricians, assemblers and service technicians to work in harsh environments. It comes with a wide range of features that make this …

  • Temperature reading
  • 3-phase rotary field tester
  • Test voltage diode test: 3.0 V/DC
  • Measuring range acoustic. Continuity tester: 100 Ω (≤ 10 Ω acoustic)
Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.1 mV
V AC reading range (max.) 750 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω - 60 MΩ
Reading range - capacity 0,001 LF 60 mF
Frequency reading range 600 Hz -40 MHz
DC resistance 10 MΩ
AC resistance 10 MΩ
Basic accuracy 0.7 %
Measurement type True RMS
Frequency range 40 Hz -400 Hz
Power supply (details) 9 V battery
Weight 473 g
Calibrated to
Manufacturer's standards (no certificate)
Reading category CAT III 1000 V , CAT IV 600 V
Voltage metering AC/DC
Current reading AC/DC
Type VC-450 E
Display Digital
Display (counts) 6000

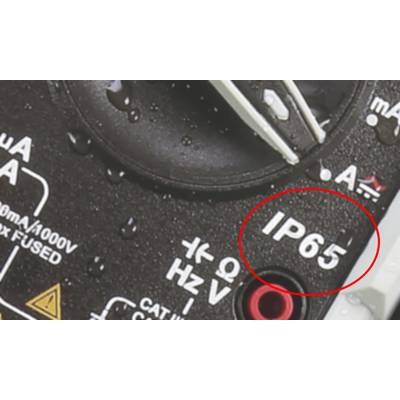

Features Water-jet proof (IP65)
Temperature reading range (max.) +1000 °C
Temperature reading range (min.) -40 °C
Product type Handheld multimeter

Technical data

  • Temperature reading
  • 3-phase rotary field tester
  • Test voltage diode test: 3.0 V/DC
  • Measuring range acoustic. Continuity tester: 100 Ω (≤ 10 Ω acoustic)
Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.1 mV
V AC reading range (max.) 750 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω - 60 MΩ
Reading range - capacity 0,001 LF 60 mF
