VOLTCRAFT VC-460 E Handheld multimeter Digital Water-jet proof (IP65) CAT III 1000 V, CAT IV 600 V Display (counts): 60

  • Item no.: 1500208
  • Manufacturer no.: VC-460 E
  • EAN: 4016139142012

This text is machine translated.Extremely robust multimeter The VOLTCRAFT VC-400 series has been especially designed for electrical contractors and maintenance engineers routinely working in exposed conditions. It comes with a wide range of features …

  • Item no.: 1500208
  • Manufacturer no.: VC-460 E
  • EAN: 4016139142012

This text is machine translated.Extremely robust multimeter The VOLTCRAFT VC-400 series has been especially designed for electrical contractors and maintenance engineers routinely working in exposed conditions. It comes with a wide range of features …

  • Analogue bar graph
  • 3-phase rotary field tester
  • Simultaneous display of 2 measured values
  • Test voltage diode test: 3.0 V/DC
  • Measuring range acoustic. Continuity tester: 100 Ω (≤ 10 Ω acoustic)
Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.1 mV
V AC reading range (max.) 750 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.01 Ω - 60 MΩ
Reading range - capacity 0,001 LF 60 mF
Frequency reading range 60 Hz -40 MHz
AC resistance 10 MΩ
Basic accuracy 0.7 %
Measurement type True RMS
Frequency range 40 Hz - 5 kHz
Power supply (details) 9 V battery
Weight 473 g
Calibrated to
Manufacturer's standards (no certificate)
Reading category CAT III 1000 V , CAT IV 600 V
Voltage metering AC/DC
Current reading AC/DC
Type VC-460 E
Display Digital
Display (counts) 6000

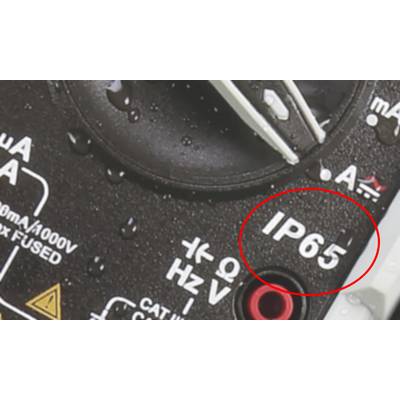

Features Water-jet proof (IP65)
Product type Handheld multimeter

Technical data

  • Analogue bar graph
  • 3-phase rotary field tester
  • Simultaneous display of 2 measured values
  • Test voltage diode test: 3.0 V/DC
  • Measuring range acoustic. Continuity tester: 100 Ω (≤ 10 Ω acoustic)
Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.1 mV
V AC reading range (max.) 750 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.01 Ω - 60 MΩ
Reading range - capacity 0,001 LF 60 mF
