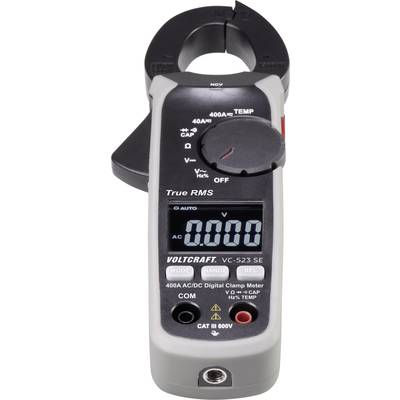

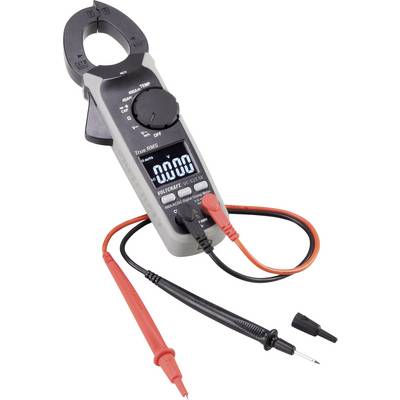

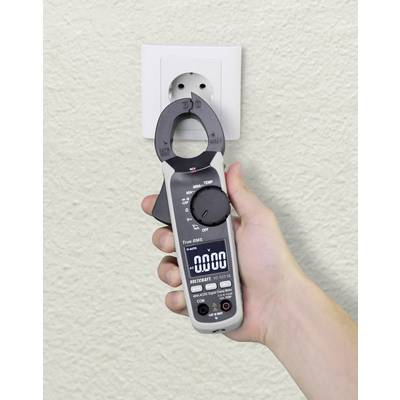

VOLTCRAFT VC-523 SE Clamp meter Digital CAT III 600 V Display (counts): 4000 SPECIAL EDITION

  • Item no.: 2139578
  • Manufacturer no.: VC-10697890
  • EAN: 4053199971817

Special Edition - same device but at a reduced price. Only while stocks last. Quick and easy reading of DC and AC current of up to 400A Unlike with multimeters, no circuit interruption required. Ideal for electric enclosures and high amperages in aut…

  • Item no.: 2139578
  • Manufacturer no.: VC-10697890
  • EAN: 4053199971817

Special Edition - same device but at a reduced price. Only while stocks last. Quick and easy reading of DC and AC current of up to 400A Unlike with multimeters, no circuit interruption required. Ideal for electric enclosures and high amperages in aut…

Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 600 V
V AC reading range (min.) 0.001 V
V AC reading range (max.) 600 V
A AC reading range (min.) 0.01 A
Amperage reading range AC (max.) 400 A
Reading range - resistance 0.1 - 40 MΩ
Reading range - capacity 10 pF - 4000 µF
Frequency reading range 0.001 Hz - 10 kHz
Basic accuracy 0.8 %
Measurement type True RMS
Frequency range 50 - 400 Hz
Power supply (details) 3 x AAA battery
Height 70 mm
Width 209 mm
Length 35 mm
Weight 270 g
Calibrated to
Manufacturer's standards (no certificate)
Reading category CAT III 600 V
Voltage metering AC/DC
Current reading AC/DC
Type VC-523 SE
Display Digital
Display (counts) 4000
Opening range of current clamps 32 mm
Product type Clamp meter

Technical data

Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 600 V
V AC reading range (min.) 0.001 V
V AC reading range (max.) 600 V
A AC reading range (min.) 0.01 A
Amperage reading range AC (max.) 400 A
Reading range - resistance 0.1 - 40 MΩ
Reading range - capacity 10 pF - 4000 µF
Frequency reading range 0.001 Hz - 10 kHz
Basic accuracy 0.8 %
