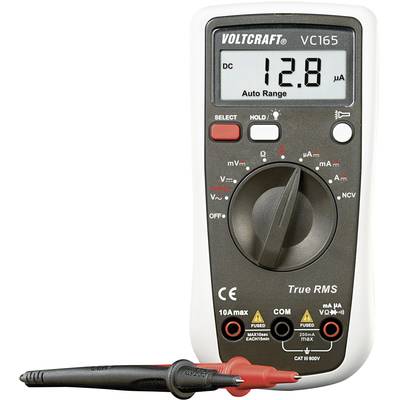

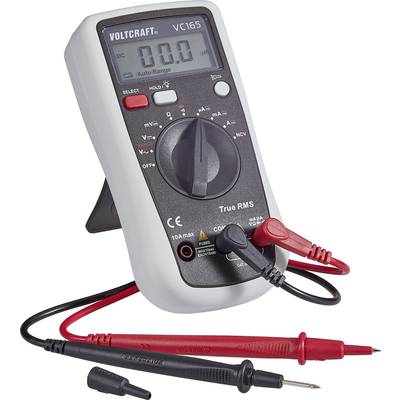

VOLTCRAFT VC165 TRMS Handheld multimeter Digital CAT III 600 V Display (counts): 2000

  • Item no.: 1340780
  • Manufacturer no.: VC165 TRMS
  • EAN: 4016138977271

This text is machine translated.The hand-held multimeter VC 165 from VOLTCRAFT ® is the ideal entry-level device for numerous measurement tasks in the household, hobby, leisure and crafts up to 600 V. Through the economical purchase price and the co…

  • Item no.: 1340780
  • Manufacturer no.: VC165 TRMS
  • EAN: 4016138977271

This text is machine translated.The hand-held multimeter VC 165 from VOLTCRAFT ® is the ideal entry-level device for numerous measurement tasks in the household, hobby, leisure and crafts up to 600 V. Through the economical purchase price and the co…

  • Detection range NCV: 100 - 240 V/AC 50 - 60 Hz
Voltage reading range DC (min.) 0.01 mV
Voltage DC reading range (max.) 600 V
V AC reading range (min.) 0.01 mV
V AC reading range (max.) 600 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω – 20 MΩ MΩ
DC resistance 10 MΩ
AC resistance 10 MΩ
Basic accuracy 0.7 %
Measurement type True RMS
Frequency range 45 - 400 Hz
Interfaces none
Height 150 mm
Width 75 mm
Length 38 mm
Calibrated to
Manufacturer's standards (no certificate)
Reading category CAT III 600 V
Voltage metering AC/DC
Current reading AC/DC
Type VC165 TRMS
Display Digital
Display (counts) 2000
Product type Handheld multimeter

Technical data

  • Detection range NCV: 100 - 240 V/AC 50 - 60 Hz
Voltage reading range DC (min.) 0.01 mV
Voltage DC reading range (max.) 600 V
V AC reading range (min.) 0.01 mV
V AC reading range (max.) 600 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω – 20 MΩ MΩ
DC resistance 10 MΩ
