Highlights & Details

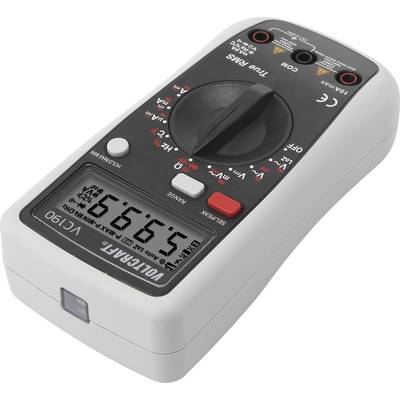

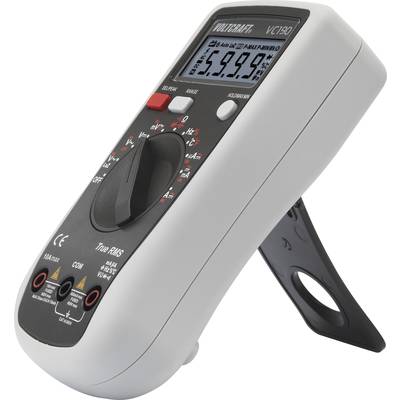

Digital multimeter VC190
- CAT III 600 V
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600.0 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
600.0 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10.00 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10.00 A
- Reading range - resistance
0.1 Ω - 60 MΩ
- Reading range - capacity
1 pF - 60 mF
- Inductivity reading range
N/A
- Frequency reading range
10Hz -1 MHz
- Temperature
-40 °C - + 400 °C
- DC resistance
60.00 MΩ
- AC resistance
60.00 MΩ
- Basic accuracy
0.9 %
- Measurement type (details)
True RMS
- Height
150 mm
- Width
75 mm
- Length
38 mm
- Weight
221 g
ISO standards
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
VC190
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 38 x 75 x 150 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2521778 VOLTCRAFT VC-12608890 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 6000
Warranty Terms
Warranty Terms 2521778 VOLTCRAFT VC-12608890 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 6000
Description
This text is machine translated.
Features
- Temperature measurement -40 to 400°C (-40 to 752°F)Continuity testingMax. Display: 6000 counts, update 2-3 times per secondAuto range, True RMSData managementAutomatic switch-off (about 15 minutes)MAX/MIN recordingPEAK acquisitionInput protectionWhite background lighting

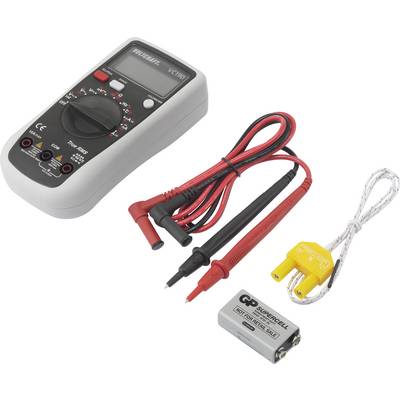

Scope of delivery
- Multimeters1 x 9 V battery1 pair of test leadsTip temperature contact probeInstructions (CD)
