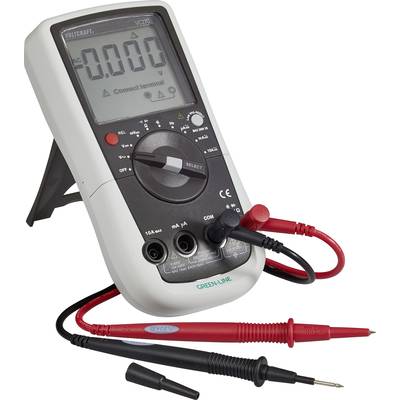

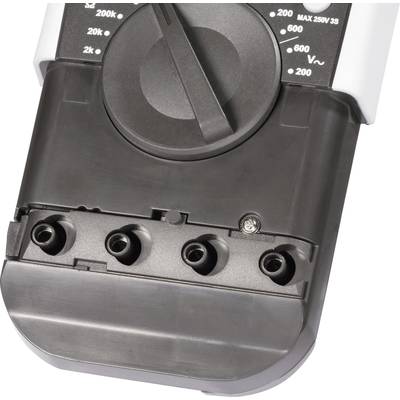

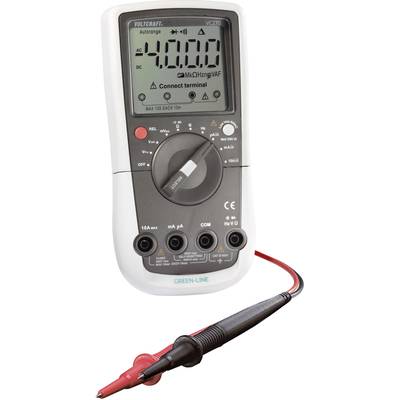

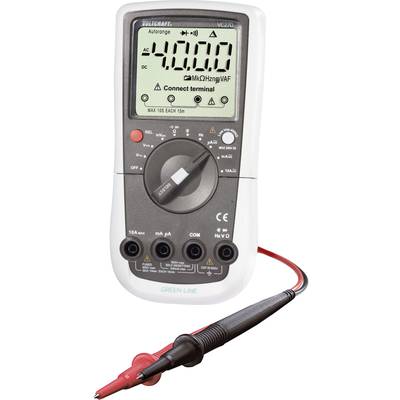

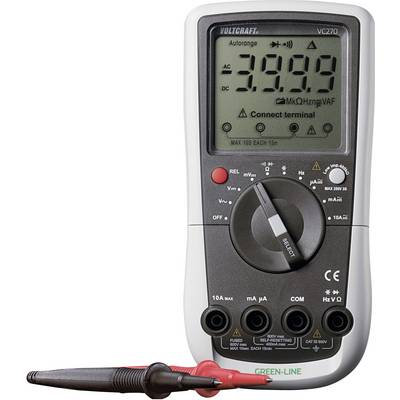

VOLTCRAFT VC270 Handheld multimeter Digital CAT III 600 V Display (counts): 4000

  • Item no.: 124502
  • Manufacturer no.: VC270
  • EAN: 4016138535723

The entry-level class in the professional measurement technology. Due to the large LCD and displays the thick bushings assignment makes the model ideal for all professional applications up to 600 V. At a keystroke, the input resistance can be tempor…

  • Item no.: 124502
  • Manufacturer no.: VC270
  • EAN: 4016138535723

The entry-level class in the professional measurement technology. Due to the large LCD and displays the thick bushings assignment makes the model ideal for all professional applications up to 600 V. At a keystroke, the input resistance can be tempor…

Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 600 V
V AC reading range (min.) 0.001 V
V AC reading range (max.) 600 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω - 40 MΩ
Reading range - capacity 0.01 nF -100 µF
Frequency reading range 1 mHz - 10 MHz
DC resistance 10 MΩ
AC resistance 10 MΩ
Basic accuracy 0.8 %
Measurement type Average
Frequency range 40 Hz - 400 Hz Hz
Interfaces none
Power supply (details) 9 V battery pack
Height 185 mm
Width 91 mm
Weight 380 g
Calibrated to
Manufacturer's standards (no certificate)
Reading category CAT III 600 V
Voltage metering AC/DC
Current reading AC/DC
Type VC270
Display Digital
Display (counts) 4000
Displays 4000 counts
Product type Handheld multimeter

Technical data

Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 600 V
V AC reading range (min.) 0.001 V
V AC reading range (max.) 600 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω - 40 MΩ
Reading range - capacity 0.01 nF -100 µF
