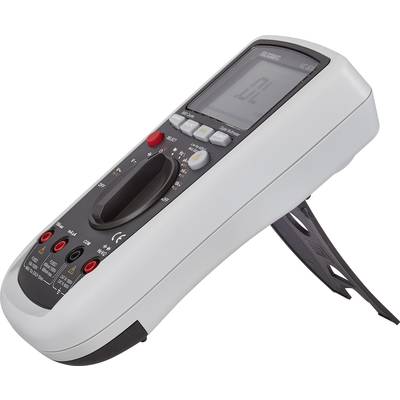

VOLTCRAFT VC850 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 1000 V, CAT IV 600 V Display (counts)

  • Item no.: 124606
  • Manufacturer no.: VC850 (ISO)
  • EAN: 4016138601473

The new middle-class by Voltcraft Sturdy, reliable, accurate equipment, ergonomic shape, safe - these are the attribute, which describes this professional multimeter. Also in puncto safety, this multimeter sets the diagram. The patented casing constr…

  • Item no.: 124606
  • Manufacturer no.: VC850 (ISO)
  • EAN: 4016138601473

The new middle-class by Voltcraft Sturdy, reliable, accurate equipment, ergonomic shape, safe - these are the attribute, which describes this professional multimeter. Also in puncto safety, this multimeter sets the diagram. The patented casing constr…

Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.001 V
V AC reading range (max.) 750 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω - 60 MΩ
Reading range - capacity 0.01 nF - 4000 µF
Frequency reading range 10 Hz -10 MHz
Temperature -40 to +1000 °C
DC resistance 10 MΩ
AC resistance 10 MΩ
Basic accuracy 0.5 %
Measurement type True RMS
Frequency range 45 Hz - 400 Hz Hz
Interfaces optical
Power supply (details) 9 V battery pack
Height 185 mm
Width 91 mm
Weight 380 g
Calibrated to
ISO standards
Reading category CAT III 1000 V , CAT IV 600 V
Voltage metering AC/DC
Current reading AC/DC
Type VC850
Display Digital
Display (counts) 6000
Temperature reading range (max.) +1000 °C
Temperature reading range (min.) -40 °C
A/AC reading range 0.1 µA - 10 A
Reading range A DC 0.1 µA - 10 A
Basic accuracy ±0.5 %
Displays 6000 counts
Product type Handheld multimeter

Technical data

Voltage reading range DC (min.) 0.1 mV
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.001 V
V AC reading range (max.) 750 V
Amperage reading range DC (min.) 0.1 µA
A DC reading range (max.) 10 A
A AC reading range (min.) 0.1 µA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω - 60 MΩ
Reading range - capacity 0.01 nF - 4000 µF
