VOLTCRAFT VC950 Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 100000

Item no.: 124705
Manufacturer no.: VC950
EAN: 4016138692983

Variants

Full description

Warranty: 24 months
Manufacturer: VOLTCRAFT

Item no.: 124705
Manufacturer no.: VC950
EAN: 4016138692983

Variants

Full description

Warranty: 24 months
Manufacturer: VOLTCRAFT

Technical data Description Downloads (13) Write New Review

Measuring range Duty Cycle: 20 - 80 %

Voltage reading range DC (min.)	0.001 mV
Voltage DC reading range (max.)	1000 V
V AC reading range (min.)	0.001 mV
V AC reading range (max.)	1000 V
Amperage reading range DC (min.)	0.0001 mA
A DC reading range (max.)	10 A
A AC reading range (min.)	0.0001 mA
Amperage reading range AC (max.)	10 A
Reading range - resistance	0.01Ω - 10 MΩ
Reading range - capacity	0.001 nF -40 mF
Frequency reading range	0.001 Hz -4 MHz
Temperature	-200 to +1200 °C
DC resistance	10 MΩ
AC resistance	10 MΩ
Basic accuracy	0.02 %
Measurement type	True RMS
Frequency range	40 Hz - 100 kHz Hz
Interfaces	optical , 1x USB
Power supply (details)	4 x AA battery
Height	214 mm
Width	98 mm
Weight	620 g
Calibrated to	Manufacturer's standards (no certificate)
Reading category	CAT III 1000 V , CAT IV 600 V
Voltage metering	AC/DC
Current reading	AC/DC
Type	VC950
Display	Digital
Display (counts)	100000
Features	Data logger
Temperature reading range (max.)	+1200 °C
Temperature reading range (min.)	-200 °C
A/AC reading range	0.1 µA - 10 A
Reading range A DC	0.1 µA - 10 A
Basic accuracy	±0.015 %
Displays	10000/100000 Counts
Reading category	CAT IV 600V
Product type	Handheld multimeter

Technical data

Measuring range Duty Cycle: 20 - 80 %

Voltage reading range DC (min.)	0.001 mV
Voltage DC reading range (max.)	1000 V
V AC reading range (min.)	0.001 mV
V AC reading range (max.)	1000 V
Amperage reading range DC (min.)	0.0001 mA
A DC reading range (max.)	10 A
A AC reading range (min.)	0.0001 mA
Amperage reading range AC (max.)	10 A
Reading range - resistance	0.01Ω - 10 MΩ
Reading range - capacity	0.001 nF -40 mF

Frequency reading range	0.001 Hz -4 MHz
Temperature	-200 to +1200 °C
DC resistance	10 MΩ
AC resistance	10 MΩ
Basic accuracy	0.02 %
Measurement type	True RMS
Frequency range	40 Hz - 100 kHz Hz
Interfaces	optical , 1x USB
Power supply (details)	4 x AA battery
Height	214 mm
Width	98 mm
Weight	620 g
Calibrated to	Manufacturer's standards (no certificate)
Reading category	CAT III 1000 V , CAT IV 600 V
Voltage metering	AC/DC
Current reading	AC/DC
Type	VC950
Display	Digital
Display (counts)	100000
Features	Data logger
Temperature reading range (max.)	+1200 °C
Temperature reading range (min.)	-200 °C
A/AC reading range	0.1 µA - 10 A
Reading range A DC	0.1 µA - 10 A
Basic accuracy	±0.015 %
Displays	10000/100000 Counts
Reading category	CAT IV 600V
Product type	Handheld multimeter

Documents & Downloads

conformity-certificate-124705-voltcraft-vc950-handheld-multimeter-digital-data-logger-cat-iii-1000-v-cat-iv-600-v-display-counts-100000.pdf
PDF

True RMS Digital Multimeter VC950

The new powerful logging multimeter of VC900 series for industrial applications, with important additional features such as low-pass filter for accurate voltage and frequency measurements at drive controls and other electronic devices, whose fundamental frequency is superimposed by harmonic waves.

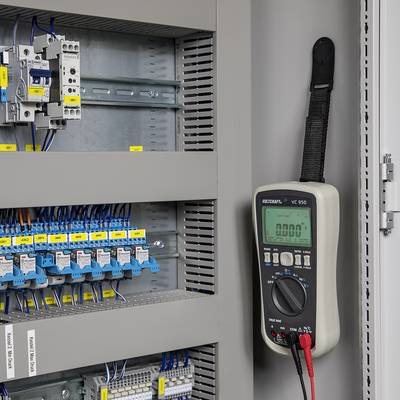

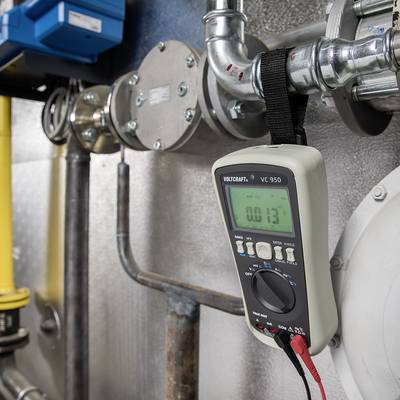

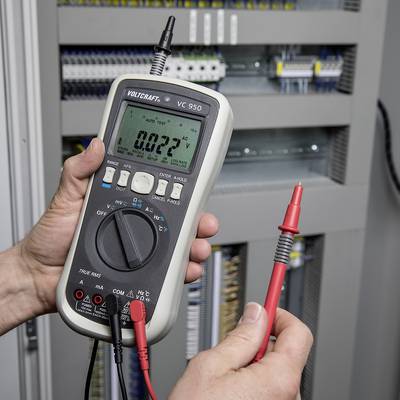

The meter is particularly suitable for detecting errors in electronics, in process automation, power distribution and at electromechanical systems. The meter can record multiple measurements in portable use and can also continue functioning without supervision. Therefore, the device has an internal memory of up to 20,000 measurements. The data can be easily transferred to the PC using optical USB port. The large display with a display of up to 100000 counts and automatic backlight allows simultaneous display of multiple measurements in dark surroundings. Navigation buttons for quick selection of menu items to simplify the handling of this measuring device. The integrated TLD®-function (test lead detection) warns the user if the measurement lines are connected incorrectly. By input voltages > The warning sign appears at 30V in the display. The VC950 also offers the option of True RMS of AC voltage and current for accurate representation of complex signals or non-linear loads. The test result is automatically reduced especially with low ohm measurements or capacitance measurements by the cable resistance with relative value mode.
The devices are for measurement in the over-voltage category CAT IV 600V and CAT III 1000V approved and tested as per EN-61010 standards.

Highlights & Details

CAT IV 600V
Auto Range
Display with 10000/100000 counts
Enormously high basic accuracy of ±0.015 %
3 Sa/s measuring rate
Data logger function for 20000 readings
Extensive features

Facts

Dual-Display with bargraph
Auto range
Standard measuring range V, A, Ω, dB, dBm
True RMS AC+DC
Measurement of frequency, capacitance, temperature
Duty Factor Measurement
Measurement of relative value
Peak Hold and Auto Hold functions
Min/max measurement.
Formation of average value (AVG)
Data logger for up to 20000 measured values
Diode test
Continuity tester
Automatic display lights

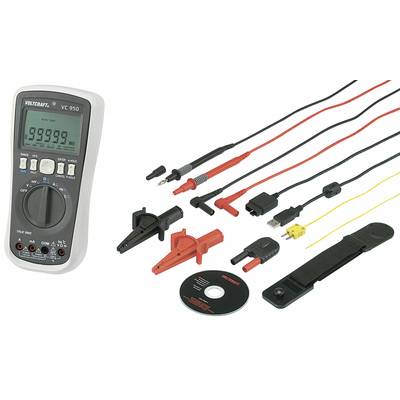

Delivery

Test leads
Alligator clips
K-type measuring adapter
K-type thermocouple sensors
4 x AA batteries
Carrying strap
Interface cable
VoltSoft analysis software
Instructions for use.

System Requirements

Windows® XP - SP2
Windows Vista
Windows 7
.Net framework V2.0 or higher

Warranty: 24 months
Manufacturer: VOLTCRAFT

Comments

Please make sure you always use the latest VoltSoft PRO version. Free to download on the product page at www.produktinfo.conrad.com.
