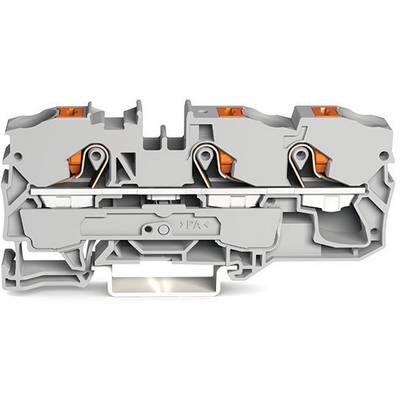

WAGO 2210-1301 Continuity 10 mm Push-in connector Grey 25 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Push-in connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
16 mm²
Nominal current - rounded value
57 A
Datasheet (PDF)
Number (Package size 25 pc(s))
Total (€ 3.87 / piece)
€ 96.63
plus VAT.
Technical specifications
- Product type
Continuity
- Features
+ latchkey
+ CAGE CLAMP®
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
10 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Factory colour
Grey
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
800 V
- Min. stripping length
17 mm
- Stripping length (max.)
19 mm
- Manufacturer part #
2210-1301
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
2210-1301
- Dim
(L x W x H) 89 x 10 x 36.90 mm
- Width
10 mm
- Height
36.90 mm
- Length
89 mm
- UKCA
not relevant
