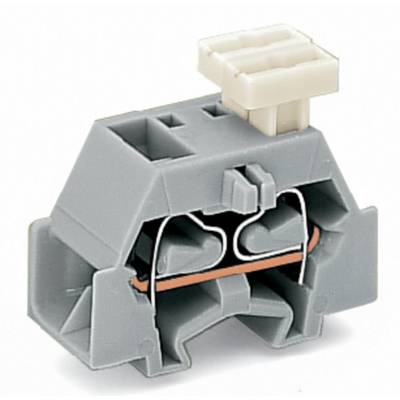

WAGO 261-336/332-000 Terminal 10 mm Pull spring Orange 200 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 200 pc(s))
Total (€ 0.95 / piece)
€ 189.07
plus VAT.
Highlights & Details
4-conductor terminal block
- 261-336/332-000
- 200 pieces/bag
Technical specifications
- MOD TERM BLK W/FF & PB 1-SIDE ORANGE
- Product type
Terminal
- Features
+ sleeve
One-sided + actuator
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
10 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Orange
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
261-336/332-000
- Content
200 pc(s)
- Industrial packaging
Yes
- Type
261-336/332-000
- Dim
(W x H) 10 mm x 23.20 mm
- Width
10 mm
- Height
23.20 mm
- Contamination level
3
Documents & Downloads
Datasheet
Datasheet 533859 WAGO 261-336/332-000 Terminal 10 mm Pull spring Orange 200 pc(s)
User & Safety Instructions
User & Safety Instructions 533859 WAGO 261-336/332-000 Terminal 10 mm Pull spring Orange 200 pc(s)
Description
On one side with lever, with mounting flange for screw fixing methods, mounting hole Ø 3.2 mm, among other things, with mounting base 209-123 also on TS 35, orange.
