WAGO 262-290 Punch-down block 12 mm Pull spring Configuration: L Grey 25 pc(s) Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Punch-down block
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Number (Package size 25 pc(s))
Total (€ 11.93 / piece)
€ 298.32
plus VAT.
14-day return policy included
Highlights & Details
4-conductor Ex e II terminal strip
- 262-290
Technical specifications
- MOD TRM STRP-2-SLF FIX EX
- Packaging type
Package
- Product type
Punch-down block
- Features
+ latch lock base
Complies with ATEX Ex-e II standards
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
20
- AWG max.
12
- Clamp width
12 mm
- No. of rows
10
- Pins per row
4
- Number of pins
40
- Factory colour
Grey
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
550 V
- Min. stripping length
9 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
262-290
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
262-290

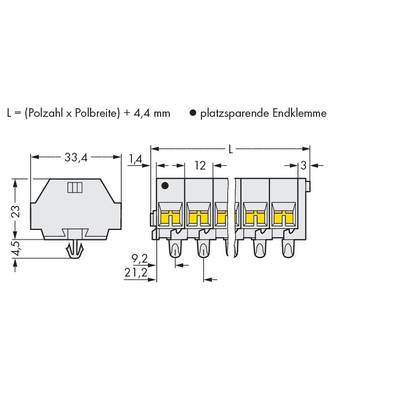

- Dim
(W x H) 124.40 mm x 23 mm
- Width
124.40 mm
- Height
23 mm
- Connector colour
Light grey
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 534762 WAGO 262-290 Punch-down block 12 mm Pull spring Configuration: L Grey 25 pc(s) Package
User & Safety Instructions
User & Safety Instructions 534762 WAGO 262-290 Punch-down block 12 mm Pull spring Configuration: L Grey 25 pc(s) Package
Description
With snap in bases, for plate thickness 0409 14.2 mm, mounting hole Ø 3.5 mm, even on aluminum rail 210-154 or 209-120 with mounting base on TS 35, complies with ATEX Ex-e II, 10-pin, light gray.
