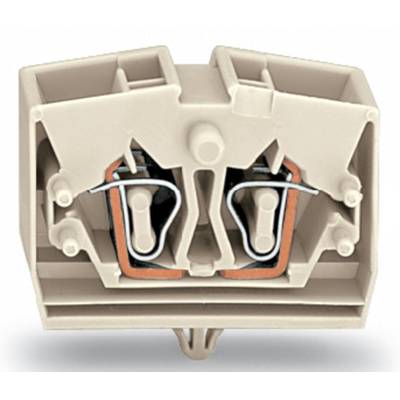

WAGO 264-280 Terminal 10 mm Pull spring Configuration: L Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
23 A
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 1.26 / piece)
€ 126.04
plus VAT.
Highlights & Details
4-conductor Ex e II terminal block
- 264-280
Technical specifications
- 4 COND.EX TERM.BL.W.SNAP-IN MT.FT.
- Product type
Terminal
- Features
+ latch lock base
Complies with ATEX Ex-e II standards
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
10 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Grey
- Nominal current
23 A
- Nominal current - rounded value
23 A
- Nominal voltage
690 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
264-280
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
264-280
- Dim
(W x H) 10 mm x 22.10 mm
- Width
10 mm
- Height
22.10 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 534993 WAGO 264-280 Terminal 10 mm Pull spring Configuration: L Grey 100 pc(s)
User & Safety Instructions
User & Safety Instructions 534993 WAGO 264-280 Terminal 10 mm Pull spring Configuration: L Grey 100 pc(s)
Description
With snap-in base, plate thickness 0409 14.2 mm, mounting hole Ø 3.5 mm, even on aluminum rail 210-154 or 209-120 with mounting base on TS 35, complies with ATEX Ex-e II, light gray.
