WAGO 264-726 Continuity 10 mm Pull spring Orange 100 pc(s)
EAN:
Part number:
Item no:
Connection
Pull spring
Cross section (flexible) (min.)
0.08 mm²
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (min.)
0.08 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number (Package size 100 pc(s))
Total (€ 1.47 / piece)
€
Highlights & Details

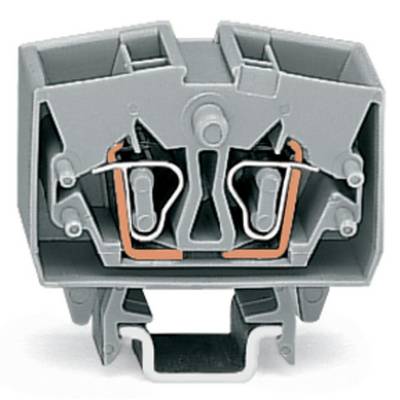

4-conductor miniature through terminal block
- 264-726
- Industrial packaging with 100 pieces
Technical specifications
- 4COND.FR.E.THR.T.B.2,5MM2 TS 15 OR.
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
10 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Orange
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
264-726
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
WAGO GmbH & Co. KG
- Dim
(W x H) 10 mm x 24.50 mm
- Width
10 mm
- Height
24.50 mm
- Contamination level
3
- Product type
Continuity
Documents & Downloads
Datasheet
Datasheet 535050 WAGO 264-726 Continuity 10 mm Pull spring Orange 100 pc(s)
User & Safety Instructions
User & Safety Instructions 535050 WAGO 264-726 Continuity 10 mm Pull spring Orange 100 pc(s)
Description
For TS 15, orange.
