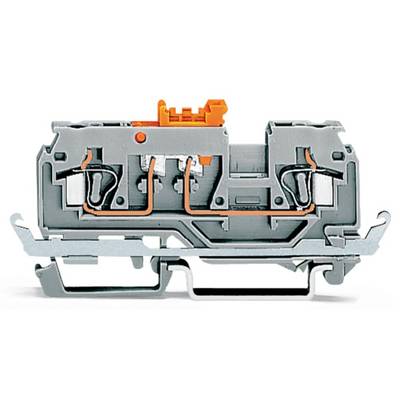

WAGO 280-869 N terminal 5 mm Pull spring Configuration: Terre Grey 50 pc(s) Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
N terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 4.12 / piece)
€ 205.87
plus VAT.
14-day return policy included
Highlights & Details
2-conductor-disconnect and measurement terminal
- 280-869
- Industrial packaging, pack of 50
Technical specifications
- Packaging type
Package
- Product type
N terminal
- Features
+ swivelling cutter
+ test option
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
5 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Nominal voltage
250 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
280-869
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
280-869
- Width
5 mm
- Connector colour
Grey
Documents & Downloads
Datasheet
Datasheet 536235 WAGO 280-869 N terminal 5 mm Pull spring Configuration: Terre Grey 50 pc(s) Package
User & Safety Instructions
User & Safety Instructions 536235 WAGO 280-869 N terminal 5 mm Pull spring Configuration: Terre Grey 50 pc(s) Package
Description
With moving cutting knife, cutting knife holder gray with test hole for test plug Ø 2 mm and Ø 2.3 mm, with shielding conductor, gray.
