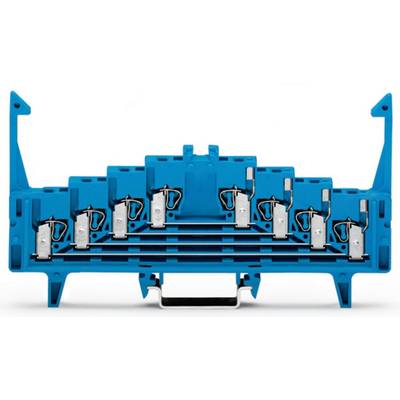

WAGO 727-233/023-000 Shunt terminal 7.62 mm Pull spring Configuration: N Blue 50 pc(s)
EAN:
Part number:
Item no:
Product type
Shunt terminal
Connection
Pull spring
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Nominal current - rounded value
12 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 9.66 / piece)
€ 483.19
plus VAT.
Highlights & Details
4-level terminal block for matrix patching
- 727-233/023-000
- Industrial packaging, pack of 50
Technical specifications
- 4-ET.-RANGIERKL.BLAU M.RASTH.TS35X15
- Product type
Shunt terminal
- Features
+ snap hook
Complies with ATEX Ex I standards
- Connection
Pull spring
- Configuration
N
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
28
- AWG max.
16
- Clamp width
7.62 mm
- No. of rows
4
- Pins per row
4
- Number of pins
16
- Factory colour
Blue
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Nominal voltage
250 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
727-233/023-000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
727-233/023-000
- Dim
(W x H) 7.62 mm x 62 mm
- Width
7.62 mm
- Height
62 mm
- Contamination level
3
Documents & Downloads
Datasheet
Datasheet 542736 WAGO 727-233/023-000 Shunt terminal 7.62 mm Pull spring Configuration: N Blue 50 pc(s)
User & Safety Instructions
User & Safety Instructions 542736 WAGO 727-233/023-000 Shunt terminal 7.62 mm Pull spring Configuration: N Blue 50 pc(s)
Description
+ snap hook, 3-2-1-0--0-1-2-3 4 in pairs connect the clamping points which lie at the same level, complies with ATEX Ex i, according to EN 60715, blue.
