Buy WAGO 741-430 Spring-loaded terminal 2.50 mm² Number of pins 10 Orange 40 pc(s)

Electrical connector in orange, rectangular in shape with multiple contacts and mounting tabs.

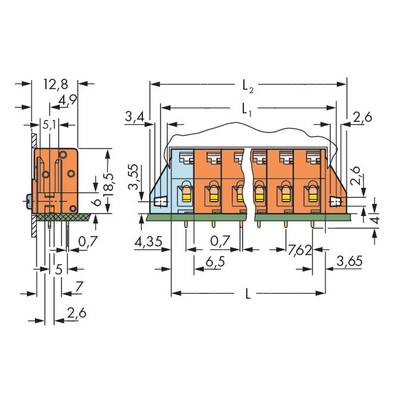

Technical drawing of an electrical plug with detailed dimensions in millimetres. Shows side and front view.

1/2

Product type

Spring-loaded terminal

7.62 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Dispatches on Wed, 14 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 40 pc(s))

Set(s)

Total (€ 6.62 / piece)

€ 264.71

plus VAT.

Report legal concerns

Highlights & Details

Feedthrough terminal strip

Content 40 pc(s)

Technical specifications

GDS-DURCHFüHRUNGSL.M.BF10-POL.RM7,62

Type: 741-430

Product type: Spring-loaded terminal

Features: + CAGE CLAMP®

CS: 7.62 mm

No. of rows: 1

Pins per row: 10

Number of pins: 10

Series: 741

Min. stripping length: 10 mm

Stripping length (max.): 6 mm

Connection: Spring-loaded terminal
Print

Cross section (flexible) (min.): 0.08 mm²

Cross section (inflexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 28

Connector orientation: Parallel (to the PCB)

AWG max.: 12

Contact material: Cathode copper, tin plated

Enclosure material: Polyamide

Factory colour: Orange

Wire protection: Yes

Actuation direction: Parallel (to the PCB)

Manufacturer part #: 741-430

Industrial packaging: Yes

Content: 40 pc(s)

Nominal voltage: 630 V

Width: 82.98 mm

Height: 22.50 mm

Length: 12.80 mm

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Type

Pins per row

Connection

Number of pins

Connector orientation

Product type

No. of rows

WAGO 741-102 Spring-loaded terminal 2.50 mm² Number of pins 2 Grey 400 pc(s)

Item no:545097

16 A

741-102

Spring-loaded terminalPrint

Parallel (to the PCB)

Spring-loaded terminal

5 mm

WAGO 741-103 Spring-loaded terminal 2.50 mm² Number of pins 3 Grey 280 pc(s)

Item no:545098

16 A

741-103

Spring-loaded terminalPrint

Parallel (to the PCB)

Spring-loaded terminal

5 mm

WAGO 741-104 Spring-loaded terminal 2.50 mm² Number of pins 4 Grey 220 pc(s)

Item no:545100

16 A

741-104

Spring-loaded terminalPrint

Parallel (to the PCB)

Spring-loaded terminal

5 mm

WAGO 741-105 Spring-loaded terminal 2.50 mm² Number of pins 5 Grey 180 pc(s)

Item no:545101

16 A

741-105

Spring-loaded terminalPrint

Parallel (to the PCB)

Spring-loaded terminal

5 mm

WAGO 741-106 Spring-loaded terminal 2.50 mm² Number of pins 6 Grey 140 pc(s)

Item no:545102

16 A

741-106

Spring-loaded terminalPrint

Parallel (to the PCB)

Spring-loaded terminal

5 mm

WAGO 741-107 Spring-loaded terminal 2.50 mm² Number of pins 7 Grey 120 pc(s)

Item no:545107

16 A

741-107

Spring-loaded terminalPrint

Parallel (to the PCB)

Spring-loaded terminal

5 mm

WAGO 741-108 Spring-loaded terminal 2.50 mm² Number of pins 8 Grey 100 pc(s)

Item no:545108

16 A

741-108

Spring-loaded terminalPrint

Parallel (to the PCB)

Spring-loaded terminal

5 mm

WAGO 741-109 Spring-loaded terminal 2.50 mm² Number of pins 9 Grey 100 pc(s)

Item no:545112

16 A

741-109

Spring-loaded terminalPrint

Parallel (to the PCB)

Spring-loaded terminal

5 mm

WAGO 741-110 Spring-loaded terminal 2.50 mm² Number of pins 10 Grey 80 pc(s)

Item no:545113

16 A

741-110

Spring-loaded terminalPrint

Parallel (to the PCB)

Spring-loaded terminal

5 mm

WAGO 741-112 Spring-loaded terminal 2.50 mm² Number of pins 12 Grey 60 pc(s)

Item no:545114

16 A

741-112

Spring-loaded terminalPrint

Parallel (to the PCB)

Spring-loaded terminal

5 mm
