Buy WAGO 745-1355 Spring-loaded terminal 6.00 mm² Number of pins 5 Grey 40 pc(s)

Grey, multi-pole connector with four connection openings, suitable for electronic applications.

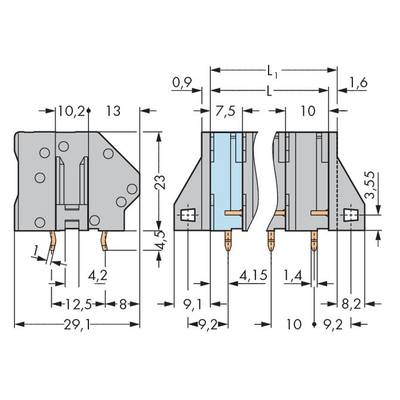

'Technical drawing of an electrical plug with precise dimensional specifications in millimetres.'

'Current load curve with temperature from 0 to 105°C and current from 0 to 40 A. Shows various curves for 2-, 4-, 6-, 12-pole configurations.'

1/3

Product type

Spring-loaded terminal

10 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Dispatches on Fri, 31 Jul

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 40 pc(s))

Set(s)

Total (€ 4.83 / piece)

€ 193.27

plus VAT.

Report legal concerns

Technical specifications

GDS-KLEMMENL.6QMM 5-POL.10MM GRAU

Type: 745-1355

Product type: Spring-loaded terminal

Features: + CAGE CLAMP®

CS: 10 mm

No. of rows: 1

Pins per row: 5

Number of pins: 5

Series: 745

Min. stripping length: 8 mm

Stripping length (max.): 12 mm

Connection: Spring-loaded terminal
Print

Cross section (flexible) (min.): 0.20 mm²

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 6.00 mm²

Cross section (inflexible) (max.): 6.00 mm²

AWG (min.): 24

Connector orientation: At an angle (to the PCB)

AWG max.: 10

Contact material: Cathode copper, tin plated

Factory colour: Grey

Wire protection: Yes

Manufacturer part #: 745-1355

Industrial packaging: Yes

Content: 40 pc(s)

Nominal voltage: 1000 V

Width: 49.10 mm

Height: 29.10 mm

Length: 27.50 mm
