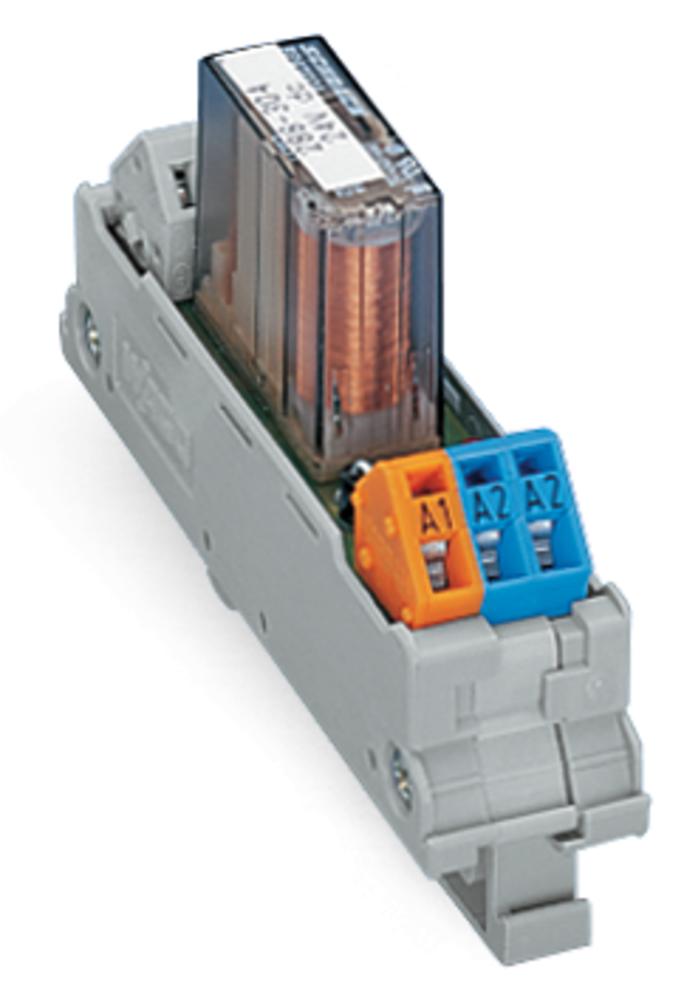

A relay with a transparent casing mounted on a grey bracket, with orange and blue terminals visible, labelled 'A1' and 'A2'.

A relay with a transparent casing mounted on a grey bracket, with orange and blue terminals visible, labelled 'A1' and 'A2'.

Diagram shows an ohmic load with DC voltage (V) against DC current (A). Curve indicates maximum values at 8A, 12A, and 16A.

Electrical circuit diagram with diodes, transistor and connections, labelled with 'A1', 'A2', '13', '14'. Connections show current flow paths.

1/3

Product type

Relay card

Operating voltage

24 V DC

Contact type

1 maker

Connection

Pull spring

Features

equipped

Datasheet (PDF)

WAGO

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 57.13 / piece)

€ 57.13

plus VAT.

Report legal concerns

Technical specifications

REL-MOD.24VDC 1SCHL.16A

Product type: Relay card

Features: equipped

Type: 288-320

Operating voltage: 24 V DC

Channels: 1

Contact type: 1 maker

Switching voltage (max.): 440 V AC

Switching current (max.): 6 A

Connection: Pull spring

Content: 1 pc(s)

Weight: 43.1 g

Length: 85 mm

Width: 20.5 mm

Height: 47 mm

Dim: (L x W x H) 85 x 20.5 x 47 mm

Documents & Downloads

Datasheet

Datasheet 507026 WAGO Relay card equipped 1 pc(s) 288-320 1 maker 24 V DC

Description

Relay soldered, relay with 1 NO contact (1a).

This text is machine translated.
