Buy WEG CWC09-01-30C03 Contactor 3 makers 4 kW 24 V DC 9 A + auxiliary contact 1 pc(s)

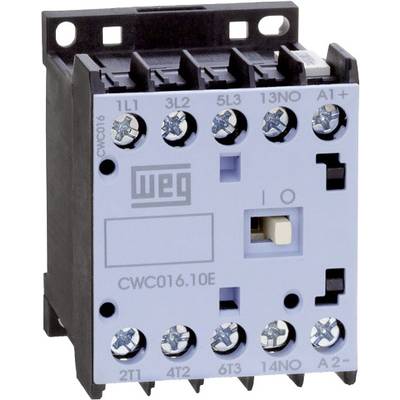

An electrical contactor with multiple terminals and a switch. Model number: 'CWC016.10E'. Ideal for control applications.

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

24 V DC

Current load

9 A

Power

4 kW

Datasheet (PDF)

Fast track dispatch on Wed, 8 Jul

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 37.81 / piece)

€ 37.81

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Technical specifications

Product type: Contactor

Type: CWC09-01-30C03

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 1 breaker

Nominal voltage: 24 V DC

Switching voltage (max.): 400 V AC

Permanent current (max.): 20 A

Current load: 9 A

: 4 kW

Features: + auxiliary contact

Mounting type: DIN rail

Connection: Screw terminal

Electrical lifespan: 10 x 10⁶ switching operations

Durability: 12 x 10⁶ cycles

: IP20

Min. temperature: -25 °C

Max. temperature: +55 °C

Width: 45 mm

Height: 58 mm

Depth: 52 mm

Dim: (W x H x D) 45 x 58 x 52 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 1398473 WEG CWC09-01-30C03 Contactor 3 makers 4 kW 24 V DC 9 A + auxiliary contact 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1398473 WEG CWC09-01-30C03 Contactor 3 makers 4 kW 24 V DC 9 A + auxiliary contact 1 pc(s)

Description

Contactor CWC0 for switching electric motors. With technical and mechanically co-ordinated motor protective-power switches MPW and motor protective relay RW built a fast compact motor starter Built and tested according to IEC/EN 60947 or DIN VDE 0660, fulfils requirements and certifications according to UL/CSA, GOST. Servo contact and extinguishing joints are pluggable on front side
