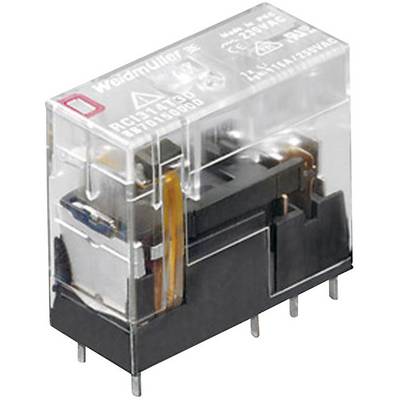

Weidmüller RCI424AC4 Plug-in relay 24 V DC 8 A 2 change-overs 1 pc(s)

Weidmüller RCI424AC4 PCB Mount Relay 2CO

Weidmüller RCI424AC4 PCB Mount Relay 2CO

Type	RCI424AC4
Coil nominal voltage	24 V DC
Min. pick-up voltage	16.8 V DC
Control mode	monostable, 1 coil
R_(coil)	1440 Ω
Contact type	2 change-overs
Contact material	AgNi 90/10
Switching voltage (max.)	400 V AC
Switching current (max.)	8 A
Max. switching capacity	2000 VA , 192 W
Creepage distance (coil/clips)	8 mm
Connection	Connector
Fall time	6 ms
Min. temperature	-40 °C
Max. temperature	+70 °C
Weight	14.53 g
Colour	Transparent
Width	13 mm
Height	29 mm
Depth	25.6 mm
Dim	(W x H x D) 13 x 29 x 25.6 mm
Industrial packaging	Yes
Content	1 pc(s)
RoHS-compliant	Ja
Compatible with (details)	RCIKIT
Type	Without test button
Nominal voltage (details)	24 V DC
Switching capacity	2000 VA
Switching current	8 A
Type	RCI424AC4
Contact type	DPDT-CO
Product type	Plug-in relay

Technical data

Creepage distance (coil/clips)	8 mm
Connection	Connector
Fall time	6 ms
Min. temperature	-40 °C
Max. temperature	+70 °C
Weight	14.53 g
Colour	Transparent
Width	13 mm
Height	29 mm
Depth	25.6 mm
Dim	(W x H x D) 13 x 29 x 25.6 mm
Industrial packaging	Yes
Content	1 pc(s)
RoHS-compliant	Ja
Compatible with (details)	RCIKIT
Type	Without test button
Nominal voltage (details)	24 V DC
Switching capacity	2000 VA
Switching current	8 A
Type	RCI424AC4
Contact type	DPDT-CO
Product type	Plug-in relay
