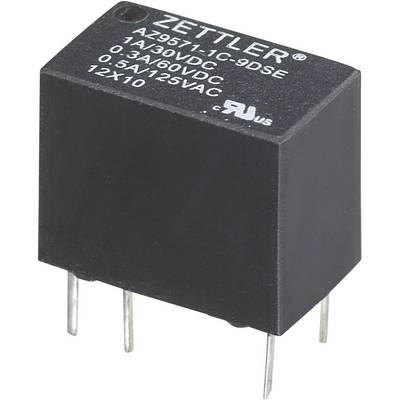

Zettler Electronics AZ9571-1C-3DSE PCB relay 3 V DC 1 A 1 change-over 1 pc(s)
- Item no.: 507450
- Manufacturer no.: 507450
- EAN: 2050001446374
Sealed version for automatic wave soldering.
This text is machine translated.
- Warranty: 24 months
- Manufacturer: Zettler Electronics
- Item no.: 507450
- Manufacturer no.: 507450
- EAN: 2050001446374
Sealed version for automatic wave soldering.
This text is machine translated.
- Warranty: 24 months
- Manufacturer: Zettler Electronics
Technical data
| Type | AZ9571-1C-3DSE |
|---|---|
| Coil nominal voltage | 3 V DC |
| Min. pick-up voltage | 2.4 V DC |
| Max. pick-up voltage | 6 V DC |
| Control mode | monostable, 1 coil |
| R(coil) | 60 Ω |
| Contact type | 1 change-over |
| Contact material | Ag + Au |
| Switching voltage (max.) | 60 V DC , 125 V AC |
| Switching current (max.) | 1 A |
| Max. switching capacity | 30 W , 62.5 VA |
|---|---|
| Connection | Solder pins |
| Insulation voltage | 400 V |
| Min. temperature | -40 °C |
| Max. temperature | +70 °C |
| Length | 12.8 mm |
| Width | 7.8 mm |
| Height | 10.3 mm |
| Dim | (L x W x H) 12.8 x 7.8 x 10.3 mm |
| Content | 1 pc(s) |
| RoHS-compliant | Yes |
| Contact type | 1 CO, SPDT |
| Product type | PCB relay |
Documents & Downloads
Sub-miniature PCB relay
Sealed version for automatic wave soldering.
This text is machine translated.
- Warranty: 24 months
- Manufacturer: Zettler Electronics
