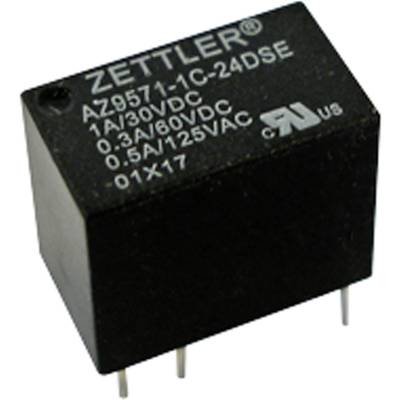

Zettler Electronics AZ9571-1C-5DSE PCB relay 5 V DC 1 1 change-over 1 pc(s)
No image
- Item no.: 2340757
- Manufacturer no.: AZ9571-1C-5DSE
- EAN: 2050006599013
Sealed version for automatic wave soldering.
This text is machine translated.
- Warranty: 24 months
- Manufacturer: Zettler Electronics
- Item no.: 2340757
- Manufacturer no.: AZ9571-1C-5DSE
- EAN: 2050006599013
Sealed version for automatic wave soldering.
This text is machine translated.
- Warranty: 24 months
- Manufacturer: Zettler Electronics
Technical data
| Type | AZ9571-1C-5DSE |
|---|---|
| Coil nominal voltage | 5 V DC |
| Min. pick-up voltage | 4 V DC |
| Max. pick-up voltage | 10 V DC |
| Control mode | monostable, 1 coil |
| R(coil) | 167 Ω |
| Contact type | 1 change-over |
| Contact material | AgNi+Au |
| Switching voltage (max.) | 60 V DC |
| Switching current (max.) | 1 |
| Max. switching capacity | 30 W |
|---|---|
| Response time | 5 ms |
| Durability | 5 x 10E6 |
| Min. temperature | -30 °C |
| Max. temperature | +70 °C |
| Length | 12.50 mm |
| Width | 7.50 mm |
| Height | 10.00 mm |
| Dim | (L x W x H) 12.50 x 7.50 x 10.00 mm |
| Content | 1 pc(s) |
| RoHS-compliant | Yes |
| Contact type | 1 CO, SPDT |
| Product type | PCB relay |
Documents & Downloads
Sub-miniature PCB relay
Sealed version for automatic wave soldering.
This text is machine translated.
- Warranty: 24 months
- Manufacturer: Zettler Electronics
