Zettler Electronics AZ983-1A-12D Automotive relay 12 V DC 80 A 1 maker

Item no.: 507418
Manufacturer no.: 507418
EAN: 2050001446091

Relay with high inrush current and a permissible operating temperature up to +85 °C. Certified according to standards ISO/TS 16949 and ISO14001, tested according to SAEJ2544 specifications.

Full description

Warranty: 24 months
Manufacturer: Zettler Electronics

Item no.: 507418
Manufacturer no.: 507418
EAN: 2050001446091

Relay with high inrush current and a permissible operating temperature up to +85 °C. Certified according to standards ISO/TS 16949 and ISO14001, tested according to SAEJ2544 specifications.

Full description

Warranty: 24 months
Manufacturer: Zettler Electronics

Technical data Description Downloads (1) Write New Review

Insulation voltage (coil/contact, contact/contact) 500 V_rms
Insulation resistance (500 V/DC) 100 MΩ
Contact resistance:< 50 mΩ

Type	AZ983-1A-12D
Features	w/o elbow mount
Coil nominal voltage	12 V DC
Contact type	1 maker
Contact material	Silver tin oxide
Connection	Print
Switching voltage (max.)	75 V DC
Switching current (max.)	80 A
Max. switching capacity	1120 W
R_(coil)	80 Ω
Durability	1 x 10⁷ switching operations
Electrical lifespan	1 x 10⁵ switching operations
Min. temperature	-40 °C
Max. temperature	+85 °C
Width	29 mm
Height	28 mm
Length	29 mm
RoHS-compliant	Yes
Insulation resistance	(500 V/DC) 100 MΩ
Contact resistance	<50 mΩ
Nominal voltage (details)	12 V DC
Switching capacity	1120 W
Switching voltage	Max 75 V DC
Switching current	80 A
Type	AZ983-1A-12D
Connection	PCB connections
Insulation voltage	(Coil/contact, contact/contact) 500 V_rms
Contact type	SPST-NO
Temperature range	-40 - +85 °C
Product type	Automotive relay

Technical data

Insulation voltage (coil/contact, contact/contact) 500 V_rms
Insulation resistance (500 V/DC) 100 MΩ
Contact resistance:< 50 mΩ

Type	AZ983-1A-12D
Features	w/o elbow mount
Coil nominal voltage	12 V DC
Contact type	1 maker
Contact material	Silver tin oxide
Connection	Print
Switching voltage (max.)	75 V DC
Switching current (max.)	80 A
Max. switching capacity	1120 W
R_(coil)	80 Ω

Durability	1 x 10⁷ switching operations
Electrical lifespan	1 x 10⁵ switching operations
Min. temperature	-40 °C
Max. temperature	+85 °C
Width	29 mm
Height	28 mm
Length	29 mm
RoHS-compliant	Yes
Insulation resistance	(500 V/DC) 100 MΩ
Contact resistance	<50 mΩ
Nominal voltage (details)	12 V DC
Switching capacity	1120 W
Switching voltage	Max 75 V DC
Switching current	80 A
Type	AZ983-1A-12D
Connection	PCB connections
Insulation voltage	(Coil/contact, contact/contact) 500 V_rms
Contact type	SPST-NO
Temperature range	-40 - +85 °C
Product type	Automotive relay

Documents & Downloads

datasheet-507418-zettler-electronics-az983-1a-12d-automotive-relay-12-v-dc-80-a-1-maker.pdf
PDF

MINI-ISO car relay

Relay with high inrush current and a permissible operating temperature up to +85 °C. Certified according to standards ISO/TS 16949 and ISO14001, tested according to SAEJ2544 specifications.

Warranty: 24 months
Manufacturer: Zettler Electronics

Comments

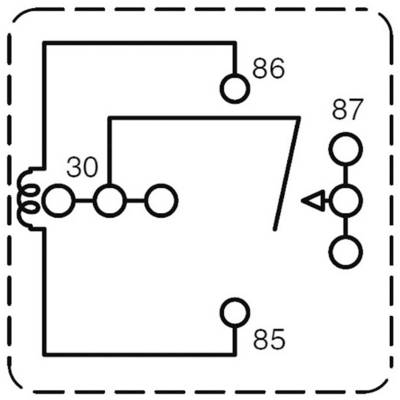

Connections indicator drawing shows version 1 CO contact. Please note sheet.
