Buy Renkforce Hard drives Adapter [1x USB 3.2 1st Gen connector A (USB 3.0) - 1x IDE socket 40-pin, IDE socket 44-pin, SATA

USB 3.0 adapter for SATA III and IDE, with LED indicators for power, USB, IDE and SATA, by Renkforce.

Two hands are holding an adapter labelled 'USB 3.0 to SATA/IDE' and a hard drive that can be connected.

A USB adaptor connects an external hard drive to a laptop. A hand is holding the USB plug close to the laptop port.

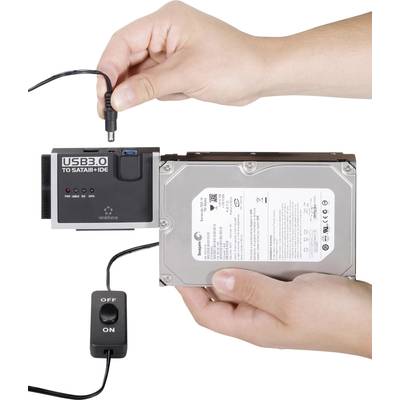

'Two hands are connecting an external USB 3.0 to SATA/IDE adaptor card with a hard drive. The adaptor has an on/off switch.'

An internal hard drive is connected via a USB 3.0 to SATA adapter. The adapter enables connection to an external USB device.

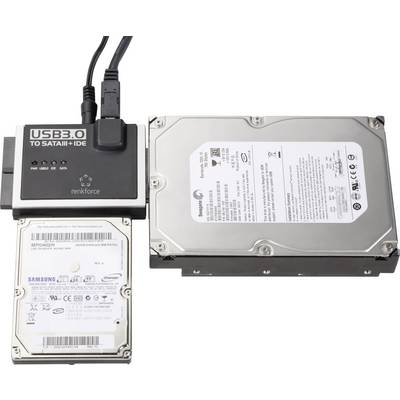

A USB adapter connects a 2.5-inch and a 3.5-inch hard drive with a USB 3.0 connection for rapid data transfer.

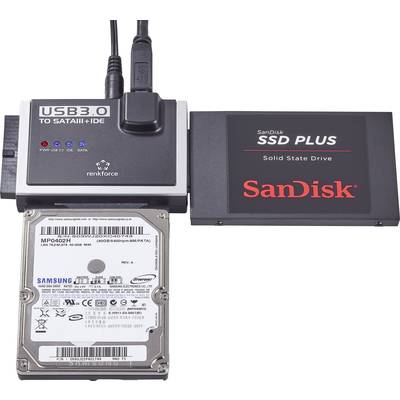

'USB 3.0 to SATA/IDE Adapter' connects a Samsung hard drive and a SanDisk SSD. The adapter enables data transfer between drives.

A USB adapter device connects SATA with IDE, featuring USB3.0 ports, 12V power supply, and LED indicators for operation and functionality.

1/8

Fast track dispatch on Mon, 6 Jul

738 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 28.56 / piece)

€ 31.92

-11 %

€ 28.56

plus VAT.

Report legal concerns

Highlights & Details

Renkforce USB 3.0 to IDE/SATA Converter

Makes connecting external SATA and IDE devices via USB easy
USB 3.0 enables data transfer at a rate of up to 5 Gbps
For data backup and hard disk/HDD testing
Incl. mains adapter for external power supply
Also suitable for 2.5" and 3.5" SATA SSDs

Technical specifications

Dimensions (L x W x H): 98 x 66 x 21.5 mm
Hard disk capacity (max.): 3 TB

Product type: Hard drives Adapter

Connection type: USB
SATA
IDE

No. of A connectors: 1 x

Type A: USB 3.2 1st Gen connector A (USB 3.0)

No. of B connections: 1 x

Type B: IDE socket 40-pin
IDE socket 44-pin
SATA plug 7+15-pin

Cable length: 1.20 m

Factory colour: Black

Shielding: Shielding film

Connector version: straight

: 28

Cable use: Hard drives

Version: Adapter

Range of use: USB adapters

: Tin plated copper

Cable design: Round

Max. power: 4.5 W @ 5 V / 0.9 A

Transfer rate (max.): 5 GBit/s

Video transmission possible: No

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1277996 Renkforce Hard drives Adapter [1x USB 3.2 1st Gen connector A (USB 3.0) - 1x IDE socket 40-pin, IDE socket 44-pin, SATA

Conformity certificate

Conformity certificate 1277996 Renkforce Hard drives Adapter [1x USB 3.2 1st Gen connector A (USB 3.0) - 1x IDE socket 40-pin, IDE socket 44-pin, SATA

Description

USB converter for accessing data on SATA drives, IDE drives and SSDs without installing them
Up to now, transfering files from old and already removed hard drives using a PC or laptop required re-installing them. A time-consuming and not always straightforward task. This converter allows you to connect external drives to the USB 3.0 port of a PC or laptop - without the need for an enclosure, caddy or brackets.

No installation in desktop PC required
No fiddling with tiny screws and time-consuming set-ups. Plug in via USB. Done.

Back up via USB
The converter turns IDE drives, SATA HDDs and SATA SSDs into external USB drives. Means transfering images and files from already removed old hard drives and creating backups has become super easy. Moreover, the converter allows testing and operating any hard disk and burners via USB 3.0.

USB 3.0 SuperSpeed
USB 3.0 enables transfering data stored on already removed SATA/IDE hard disks/disk drives at rates of up to 5 Gbps (about 10 x faster than USB 2.0), making backing up large data volumes significantly easier. The converter also supports USB 2.0, however, at much lower transfer rates.

Reading IDE and SATA HHDs simultaneously
Use one port to operate a SATA and a IDE drive at the same time. No more constant connecting and disconnecting drives.

Only power up drives when needed
The PSU comes with an On/Off switch, protecting the drives you don't need at the moment.
