2N Telecommunications 9138001 Audio/video splitter Ivory
EAN:
Part number:
Item no:
Highlights & Details

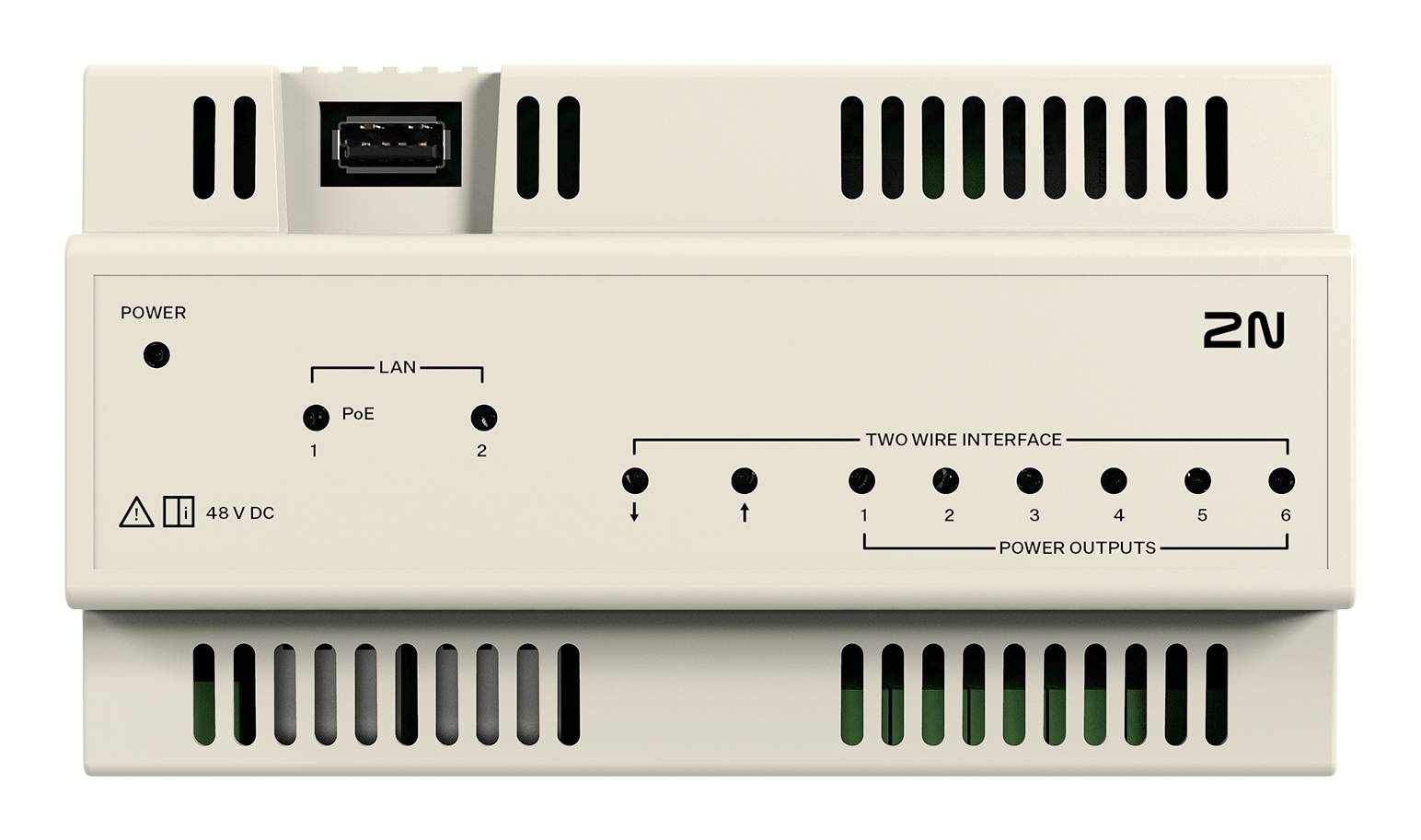

2N Clip 2-wire IP Switch Audio/Video splitter
- Audio/video splitter
- Brand compatibility 2N telecommunications
- DIN rail;
- Power over Ethernet (PoE)
- Ivory
Technical specifications
- Product type: Audio/video splitter
- Product type
Audio/video splitter
- Factory colour
Ivory
- Screen size diagonal (inches)
1 inch
- Width
155 mm
- Height
88 mm
- Depth
59 mm
- Cable length
0 cm
IP20
- Keyboard layout
German, QWERTZ
- Compatible with
2N Clip 2wire-IP
- Compatible with
2N Telecommunications
- Weight
313 g
- UKCA
yes
- RJ-45 ports quantity
2
- Operating temperature (T-T)
-10 - 50 °C
- Quantity per pack
1 Stück(e)
- Power over Ethernet (PoE)
yes
- Number of 2-wire interfaces
6
- Operating relative humidity (H-H)
10 - 90 %
- Storage temperature (T-T)
-20 - 70 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3802339 2N Telecommunications 9138001 Audio/video splitter Ivory
Description
The switch is required to install the 2N Clip 2wire-IP indoor unit. You need a switch for each floor or all six 2N Clip 2wire-IP indoor stations. Conveniently, you can connect the switch in series to serve as many floors and apartments as required.
Each switch requires its own external power supply. We recommend using an external power supply (1120302) in our portfolio.
The switch is also compatible with the 2wire-IP NVT PhyLink adapter, which is available as a single device (1120114) or in a six-pack (1120104). It can be used in conjunction with Ethernet-based devices such as intercom systems, access readers and indoor units.
This text is machine translated.
Each switch requires its own external power supply. We recommend using an external power supply (1120302) in our portfolio.
The switch is also compatible with the 2wire-IP NVT PhyLink adapter, which is available as a single device (1120114) or in a six-pack (1120104). It can be used in conjunction with Ethernet-based devices such as intercom systems, access readers and indoor units.
This text is machine translated.

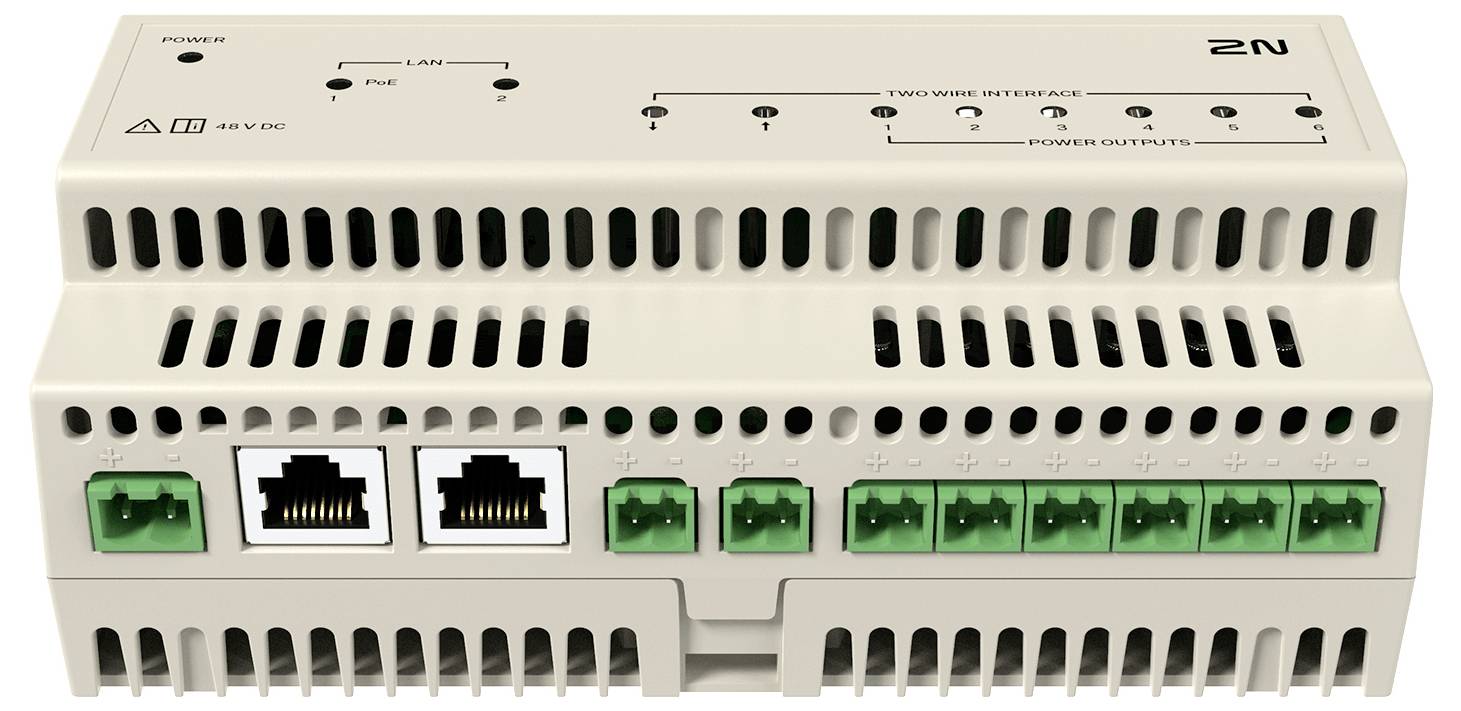

Features
- 6 ports for connection to 2N Clip 2 wire IP indoor stations,
- 2 ports for linking the switches,
- 2 Ethernet ports (one of which is PoE) for connecting 2N IP devices (intercoms, readers, answering machines), IP switches/routers or for the daisy-chain of the 2N Clip 2-wire IP switches.
