2N Telecommunications 9151031 Card reader
EAN:
Part number:
Item no:
Highlights & Details
2N 9151031 Intercom system accessories card reader
- Card reader
- Brand compatibility 2N telecommunications
- Mixed colors
Technical specifications
- Product type: Card reader
- Product color: Mixed colors
- Compatibility: Supported cards on 13.56 MHz NFC version (only card serial number is read):
- ISO/IEC 14443A - Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, Ultralight, Ultra light C.
- ISO/IEC 14443B - CEPAS, HID ICLASS
- JIS X 6319 - Felica
- Smartphone with Android 6.0 onward
- Product type
Card reader
- Screen size diagonal (inches)
1 inch
- Compatible with
2N Telecommunications
- Operating temperature (T-T)
-40 - 55 °C
- Storage temperature (T-T)
-40 - 70 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3802268 2N Telecommunications 9151031 Card reader
Description

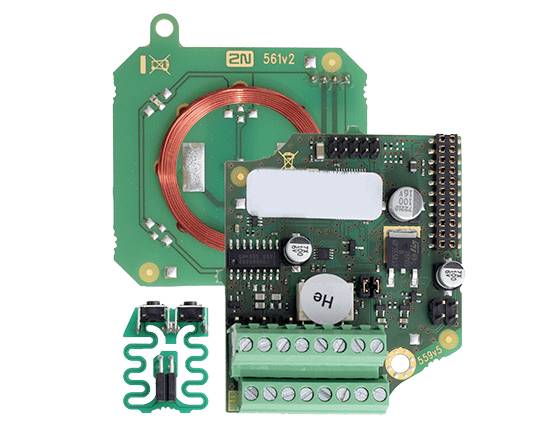

Internal RFID card reader for mounting in the 2N® IP Force. It enables the application of Mifare, HID iClass, DESFire and other standards including support for NFC APP for Android 2N® mobile key. The reader reads the serial number of a UID card. Two switches, two logical inputs and one Wiegand interface are also available. It is compatible with the 2N® IP Force with two buttons and with models with pictograms. It also includes a circuit breaker to signal the opening of the front panel.
