Name: 2N Telecommunications 9158104 Video access system Corded Grey
Brand: 2N Telecommunications
SKU: 3802330

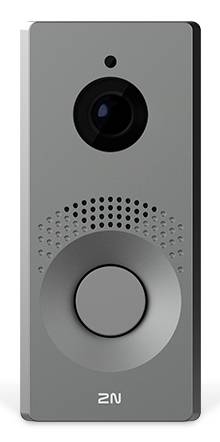

Silver 2N door intercom panel with camera lens at top, speaker grille, and large round call button below.

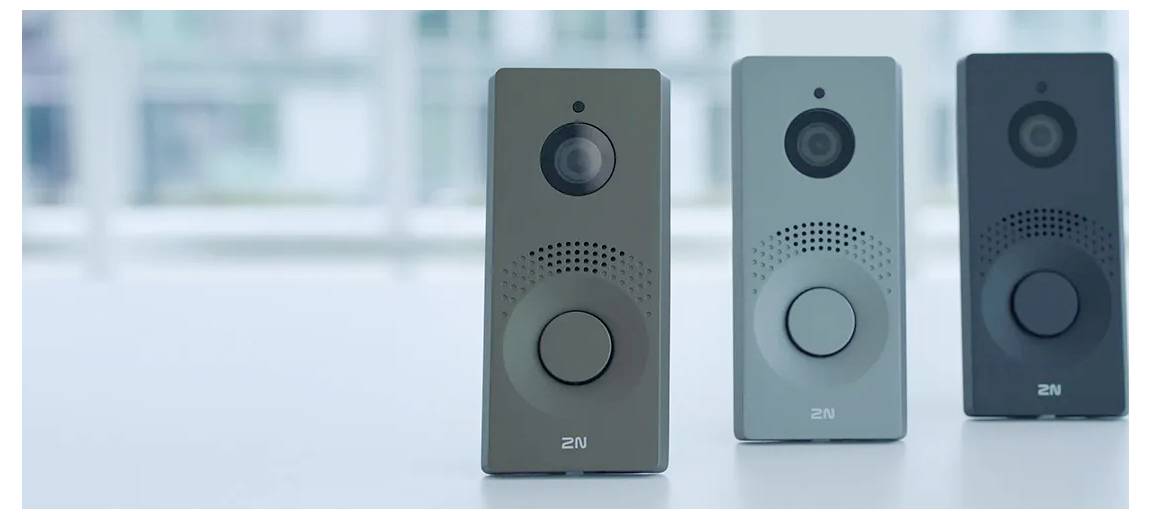

Three sleek 2N video intercom door stations displayed side by side on a bright surface, showing different color finishes.

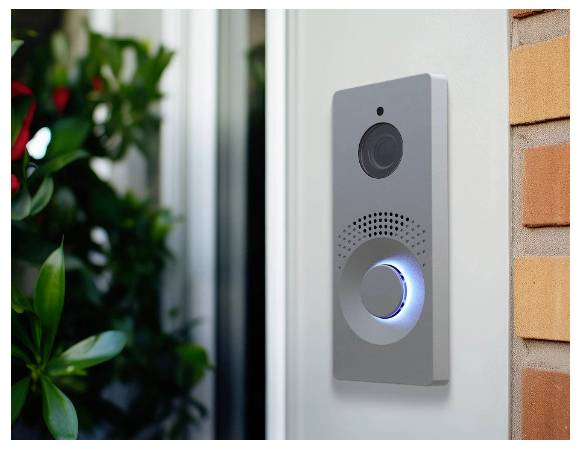

A modern video doorbell on a wall beside a brick exterior, with a lit blue ring indicating the call button.

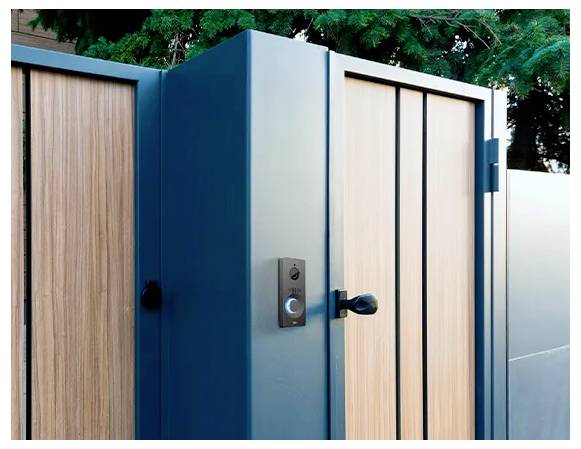

Modern gate entrance with wood and blue metal panels, featuring a keypad/intercom and handle in front of trees and a white wall.

Woman carrying a shopping bag steps out of a house while a man holds a baby in the doorway, with a video doorbell on the brick wall.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

2N Telecommunications 9158104 Video access system Corded Grey

Cable connected outdoor
Sensor type CMOS 30 fps
Hands-free device In-built loudspeakers
Maximum Number of cameras supported: 1
External unit power supply DC/PoE
Grey

Technical specifications

Maximum frame rate 30 fps
Supported positioning: Vertical

Product type: Video access system

Transfer type: Corded

Factory colour: Grey

Screen size diagonal (inches): 1 inch

Width: 78 mm

Height: 172 mm

Depth: 53 mm

: IP66

Material (details): Aluminium

Microphone: Yes

10/100/1000 Mbps ports: 1 x

Sensor type: CMOS

Video resolution: 1920 x 1440 Pixel

Hor. viewing angle: 156°

Vertical viewing angle: 116°

Weight: 355 g

UKCA: yes

Vandal-proof: yes

Number of speakers: 1

Maximum number of cameras supported: 1

Operating temperature (T-T): -40 - 60 °C

Minimum illumination: 0.3 Lux

Optical sensor size: 25,4 / 2,7 mm (1 / 2.7")

Speaker power: 3 W

Speakerphone: yes

Quantity per pack: 1 Stück(e)

Smartphone support: yes

Built-in speaker(s): yes

Power over Ethernet (PoE): yes

Outdoor unit included: yes

Fixed focal length: 1.93 mm

Operating relative humidity (H-H): 10 - 95 %

Storage temperature (T-T): -40 - 70 °C

Number of buttons: 1 Buttons

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3802330 2N Telecommunications 9158104 Video access system Corded Grey

Description

2N IP One is an extremely robust IP video intercom based on the AXIS ARTEC-7 processor and designed for family homes. It is equipped with a full HD wide-angle camera with 156 degree which enables crystal-clear video calls and possesses the function of the adaptive face magnification, in order to ensure a constant control of the front door and the home environment. It can also alert the owner to unexpected activities and thus increase the safety of your house. Connect the 2N IP One with a 2N indoor intercom, the MY2N APP and, unlike conventional video door bells, with leading house automation systems in order to improve the usage experience of the residents.

This text is machine translated.

Features

Clear, minimalist design
Full (HD), uninterrupted monitoring
Extraordinary durability
