2N Telecommunications 9160341 Access control system Black
EAN:
Part number:
Item no:
Highlights & Details

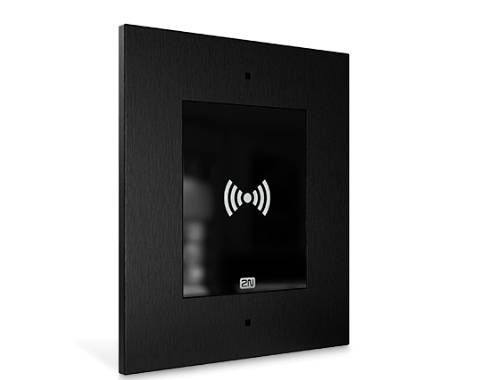

2N 9160341 Access control system Basic access control reader black
- Base access control reader
- Access chip/card access chip/card reader
- Power over Ethernet (PoE)
- Black
Technical specifications
- Product type
Access control system
- Factory colour
Black
- Type
Base access control reader
IP54
- Weight
800 g
- UKCA
yes
- Access chip/card reader
yes
- Operating temperature (T-T)
-40 - 60 °C
- Power over Ethernet (PoE) power per port
12.95 W
- Power over Ethernet (PoE)
yes
- Buzzer
yes
- RFID frequency
0.125 MHz
- DC current (max)
1 A
- Power consumption
600 mA
- Operating relative humidity (H-H)
10 - 95 %
- Storage temperature (T-T)
-40 - 70 °C
- Built-in display
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3802291 2N Telecommunications 9160341 Access control system Black
Description
Do you have a project to modernize the house, including the access system? You want to remove old controllers, simplify administration, but at the same time leave their old cards to the residents? Then the RFID-reader for 125 kHz frequency card is the right choice. A cable is sufficient for the power connection and you can use this cable to power the unit. You do not need any additional cables, forget the connection at the controller. It is located directly in the unit with the complete intelligence.
