2N Telecommunications IP-Style Basiseinheit Antibac, PICard Video door intercom Corded Black
EAN:
Part number:
Item no:
Highlights & Details
2N IP STYLE video access system 25.6 cm (10.1") black
- Cable connected
- 25.6 cm (10.1") IPS
- Touchscreen
- Wide Dynamic Range (WDR) Bluetooth
- 30 fps
- Built-in speaker
- Number of display supported: 1
- Interior unit Power supply: DC outer unit Power supply: DC
- Black
Technical specifications
- Screen technology: IPS
- Maximum frame rate 30 fps
- Product type
Video door intercom
- Transfer type
Corded
- Factory colour
Black
- Screen size diagonal (inches)
10.1 inch
- Width
170 mm
- Height
355 mm
- Depth
40 mm
- Bluetooth
Yes
- Display resolution
1280 x 800 Pixel
IP65
- Keyboard layout
German, QWERTZ
- Touchscreen (display)
Yes
- Microphone
Yes
- 10/100/1000 Mbps ports
1 x
- Supported monitors
1
- Video resolution
2560 x 1920 Pixel
- Safety
128-bit AES
1024 bit RSA
- Hor. viewing angle
144°
- Vertical viewing angle
126°
- Weight
1.95 kg
- UKCA
not relevant
- Number of speakers
2
- Operating temperature (T-T)
-30 - 60 °C
- Speaker power
4 W
- Viewing angle
170°
- RFID reader
yes
- Quantity per pack
1 Stück(e)
- Built-in speaker(s)
yes
- Power over Ethernet (PoE)
yes
- Colour
yes
- Operating relative humidity (H-H)
10 - 95 %
- Storage temperature (T-T)
-30 - 70 °C
- Maximum image resolution
2560 x 1920 p
- Wide Dynamic Range (WDR)
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3802324 2N Telecommunications IP-Style Basiseinheit Antibac, PICard Video door intercom Corded Black
Description

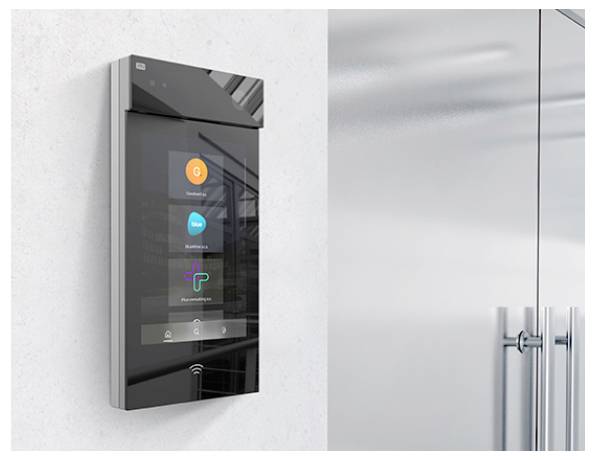

We have combined the best of IP intercom systems and IP cameras in the product 2N® IP Style. The extraordinary intercom with perfect design and 10" display rounds off the entrance area of your top projects in a sample. The brain of the intercom is a AXIS chip. This is why the camera of the intercom can keep up with most of the IP outdoor cameras of leading manufacturers.
THE CAMERA OF THE FUTURE
Use a intercom in your projects that can handle multiple parallel Full HD streams and has a 5 MPx resolution chip. It supports WDR and provides color images even in poor lighting conditions.
FASTEST ACCESS BY MOBILE PHONE
Rely on WaveKey's evolution technology. We have successfully opened doors 15,000 times with 100 different telephones. So we're sure that in 97% of cases we'll open the door for you in less than 1 second.

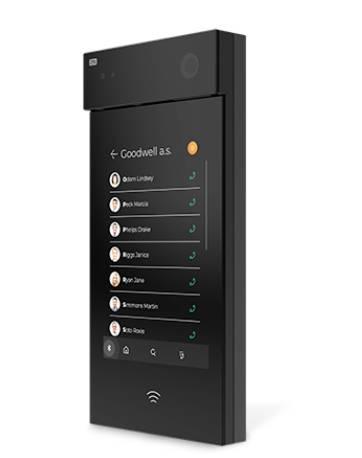

FIRST CLASS 10″ DISPLAY
The high brightness of the display guarantees a perfect even in direct sunlight
CERTIFIED PROTECTION CLASSES IP65 AND IK08
Don't be fooled by the full glass surface. 2N® IP
ENJOY THE INSTALLATION
We have developed a new installation mechanism with you. Thanks to the patented folding system, you have both hands free for working with cables.
ADAPT THE USER INTERFACE TO YOUR PROJECT
Select from 2 views of the intercom user interface. This will help you meet the special features of a home or office and bring the user experience to perfection.
Discover the benefits of integration with 2N products
Connect the 2N® IP Style intercom with the products of the world's leading providers in the field of IP telephony, video surveillance systems or home automation. Click the selected partner logo for more detailed information.
This text is machine translated.
THE CAMERA OF THE FUTURE
Use a intercom in your projects that can handle multiple parallel Full HD streams and has a 5 MPx resolution chip. It supports WDR and provides color images even in poor lighting conditions.
FASTEST ACCESS BY MOBILE PHONE
Rely on WaveKey's evolution technology. We have successfully opened doors 15,000 times with 100 different telephones. So we're sure that in 97% of cases we'll open the door for you in less than 1 second.
FIRST CLASS 10″ DISPLAY
The high brightness of the display guarantees a perfect even in direct sunlight
CERTIFIED PROTECTION CLASSES IP65 AND IK08
Don't be fooled by the full glass surface. 2N® IP
ENJOY THE INSTALLATION
We have developed a new installation mechanism with you. Thanks to the patented folding system, you have both hands free for working with cables.
ADAPT THE USER INTERFACE TO YOUR PROJECT
Select from 2 views of the intercom user interface. This will help you meet the special features of a home or office and bring the user experience to perfection.
Discover the benefits of integration with 2N products
Connect the 2N® IP Style intercom with the products of the world's leading providers in the field of IP telephony, video surveillance systems or home automation. Click the selected partner logo for more detailed information.
This text is machine translated.
Features
- The camera of the future
- Fastest access by mobile phone
- First class 10″ display
