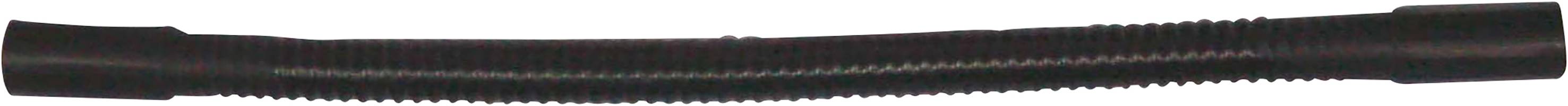

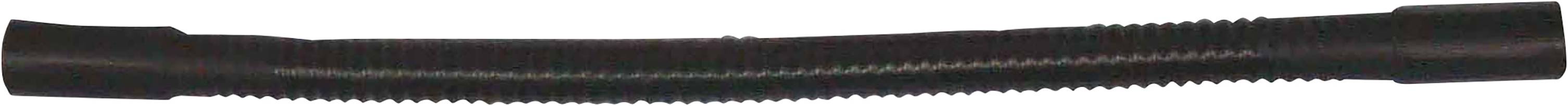

Image similar
3M WMD 41/16 Wall feedthru Board thickness (max.) 480 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Wall feedthru
Features
waterproof
gas-tight
Material
Polyolefin
Clamp Ø
16 mm
Terminal Ø (max.)
41 mm
Technical specifications
- Diameter wall penetration: 70 mm
- Cable diameter 16..41 mm
- Product type
Wall feedthru
- Features
waterproof
gas-tight
- Material
Polyolefin
- Length
700 mm
- Width
300 mm
- Height
200 mm
- Dim
(L x W x H) 700 x 300 x 200 mm
- Clamp Ø
16 mm
- Terminal Ø (max.)
41 mm
- Board thickness (max.)
480 mm
- Weight
455.00
- Content
1 pc(s)
- Manufacturer part #
7100016905
- Type
WMD 41/16
- Mounting hole diameter
70 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295902 3M WMD 41/16 Wall feedthru Board thickness (max.) 480 mm 1 pc(s)
Description
The 3M 3M wall wall wall wall penetration heat shrink is used to seal telecommunications and power cables in walls and wall penetrations. It allows the gas and waterproof introduction of cables and pipes into the building. The cables or pipes can also be drawn in at a later time and installation as a reserve bushing is also possible. The wavy surface of the wall penetration is coated with a special sealing material. This provides a permanent water-proof seal when the opening is closed with mortar or cement. The scope of delivery consists of a polyolefin shrink hose, a cable cleaning cloth and the assembly instructions, which is shrunk on a supporting spiral.
