Technical specifications
- Size
Universal
- Length
67 mm
- Content
5 pc(s)
- Age category
15 years and over
- Width
38 mm
- Current consumption
50 mA
- Servo travel (details)
8 mm
- Operating voltage
16 V AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 047980 67 mm
Conformity certificate
Conformity certificate 047980 67 mm
Description

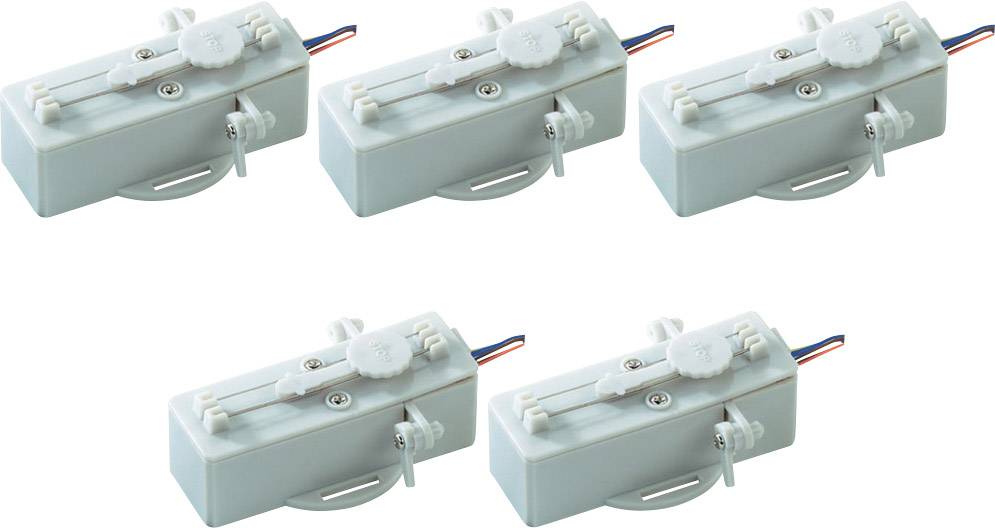

These point operating units allow you to build reproduction points in all tracks.
This text is machine translated.
This text is machine translated.
Features

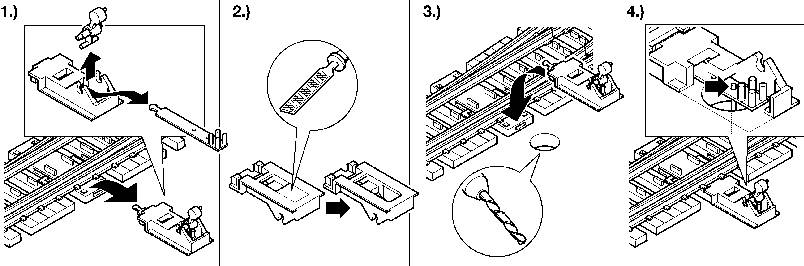

- Accurate assembly and adjustment of the strong lower floor panel drive are particularly simple: Push rod in the centre position and fix, bring the flank pointers in the central position, connect the flanks-adjusting lever and push rod with the spring wheel wire, release the connecting rod - done! Setting time 0.2 s at 12 V.
- For points with a polarizable heart ("electrofrog"), the drive is available with a built-in switch.
