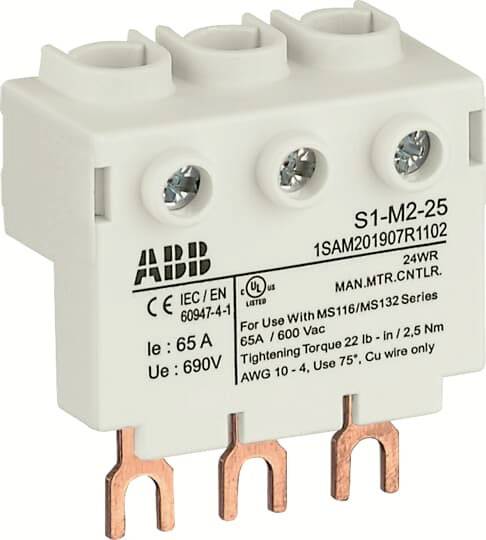

ABB 1SAM201907R1102 S1-M2-25 3-phase feed-in block high, for MS116 / MS132, 25mm2 Power connection terminal No. of rows
Product type
Power connection terminal
Number of pins
3
Dim
(W x H x D) 48 x 53.8 x 27 mm
Nominal current
65 A
Nominal current - rounded value
65 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of connections 16 mm²: 1
- Number of connections 25 mm²: 1
- Total number of connections: 1
- Touch-proof: Yes
- Number of terminals < AWG 6: 0
- Number of terminals AWG 6: 0
- Number of terminals AWG 4: 0
- Number of terminals AWG 2: 0
- Number of terminals AWG 4/0: 0
- Number of connections 250 kcmil: 0
- Number of connections > 250 kcmil: 0
- Height: 53.8
- Width 48
- Mounting type: Screw
- Number of poles: 3
- Depth: 27
- Number of connections < 6 mm²: 1
- Number of ports > 25 mm²: 0
- Number of connections 10 mm²: 1
- Nominal current 65
- Connection type: screws
- Product type
Power connection terminal
- Number of pins
3
- Dim
(W x H x D) 48 x 53.8 x 27 mm
- Nominal current
65 A
- Nominal current - rounded value
65 A
- No. of rows
1
- Content
1 pc(s)
- Width
48 mm
- Height
53.8 mm
- Depth
27 mm
65 A
Screw
47
27 mm
51 mm
Screwing
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2328086 ABB 1SAM201907R1102 S1-M2-25 3-phase feed-in block high, for MS116 / MS132, 25mm2 Power connection terminal No. of rows
User & Safety Instructions
User & Safety Instructions 2328086 ABB 1SAM201907R1102 S1-M2-25 3-phase feed-in block high, for MS116 / MS132, 25mm2 Power connection terminal No. of rows
Description
S1-M2-25 3-phase feed-in block high, for MS116 / MS132, 25mm2
