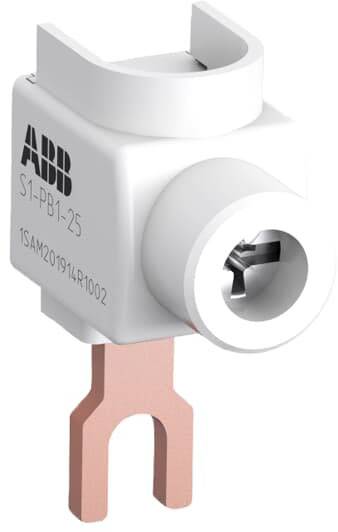

ABB 1SAM201914R1002 S1-PB1-25 1-phase infeed block for MS116 / MS132 / MS132-T, 25mm2, IEC Power connection terminal No.
EAN:
Part number:
Item no:
Product type
Power connection terminal
Number of pins
1
Dim
(W x H x D) 14 x 34 x 24 mm
Nominal current
32 A
Nominal current - rounded value
32 A
Datasheet (PDF)
Technical specifications
- Number of connections 16 mm²: 1
- Number of connections 25 mm²: 1
- Total number of connections: 1
- Touch-proof: Yes
- Number of terminals < AWG 6: 0
- Number of terminals AWG 6: 0
- Number of terminals AWG 4: 0
- Number of terminals AWG 2: 0
- Number of terminals AWG 4/0: 0
- Number of connections 250 kcmil: 0
- Number of connections > 250 kcmil: 0
- Height: 34
- Width: 14
- Mounting type: Screw
- Number of poles: 1
- Depth: 24
- Number of connections < 6 mm²: 1
- Number of ports > 25 mm²: 0
- Number of connections 10 mm²: 1
- Nominal current 32
- Connection type: screws
- Product type
Power connection terminal
- Number of pins
1
- Dim
(W x H x D) 14 x 34 x 24 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- No. of rows
0
- Content
1 pc(s)
- Width
14 mm
- Height
34 mm
- Depth
24 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324775 ABB 1SAM201914R1002 S1-PB1-25 1-phase infeed block for MS116 / MS132 / MS132-T, 25mm2, IEC Power connection terminal No.
User & Safety Instructions
User & Safety Instructions 2324775 ABB 1SAM201914R1002 S1-PB1-25 1-phase infeed block for MS116 / MS132 / MS132-T, 25mm2, IEC Power connection terminal No.
Description
S1-PB1-25 1-phase infeed block for MS116 / MS132 / MS132-T, 25mm2, IEC
