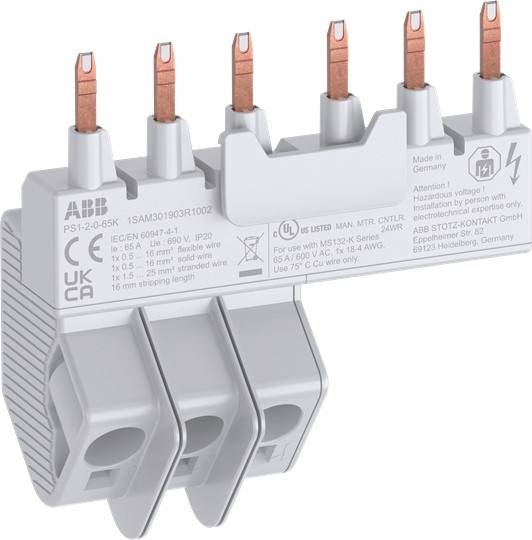

ABB 1SAM301903R1002 Bus bar PS1-2-0-65K Busbar Grey 8 mm² 65 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Busbar
Type
Insulated
Operating voltage
690 V
Factory colour
Grey
Cross section
8 mm²
Technical specifications
- Type
Insulated
- Product type
Busbar
- Operating voltage
690 V
- Factory colour
Grey
- Cross section
8 mm²
- Number of pins
3
- Nominal current
65 A
- Nominal current - rounded value
65 A
- No. of partitions
4.95
- Content
1 pc(s)
- Length
86.7 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3785191 ABB 1SAM301903R1002 Bus bar PS1-2-0-65K Busbar Grey 8 mm² 65 A 1 pc(s)
Information
Information 3785191 ABB 1SAM301903R1002 Bus bar PS1-2-0-65K Busbar Grey 8 mm² 65 A 1 pc(s)
Description
The 3-phase power rails PS1-2-0-65K enables a simple and fast parallel feed of 2x MS132-K motor protection switches without tools by simply plugging the power rails in the terminals. The feed block is integrated in the power rail. The rated operating current is 65 A. The PS1-K busbars are approved for UL Type E and Type F applications.
