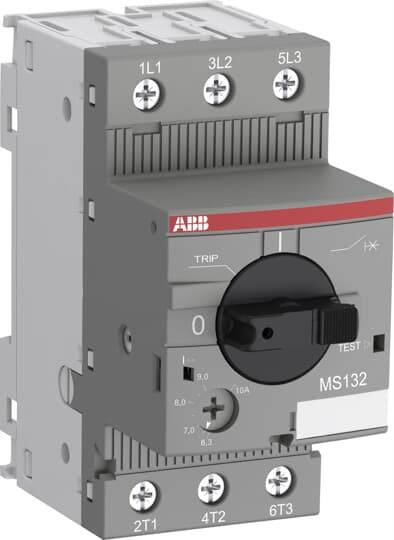

ABB 1SAM350000R1007 MS132-2.5 RCCB 1 pc(s)

Motor protection switch MS132 with thermal and electromagnetic protection stands for the compact and powerful series with hohem breaking capacity for motor protection up to 15 kW (400 V) with a module width of 45 mm. The temperature-compensated device has a rotary handle control with a clear switching position display I/TRIP/0. In addition, MS132 has a short-circuit display. The rotary handle can be locked directly with the help of a padlock in the 0 position. Auxiliary, signal and short-circuit signaling contacts as well as undervoltage and shunt trip units can be mounted without tools. 3-phase rails for 65 A or for 100 A and feed blocks for 25 mm² or 35 mm² permit the joint infeed of several motor circuit breakers. Protective housings as well as accessories for installation in control cabinets and doors complement the product range. ATEX certification allows the protection of motors in hazardous areas, UL approval as "Self protected Combination motor cotroller" extends the application area in North America.

This text is machine translated.
