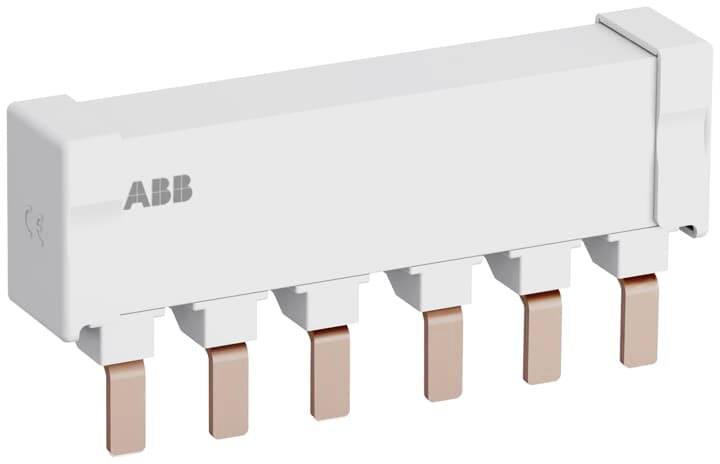

ABB 1SAM401920R1002 PS2-2-0-125 3-phase busbar for 2 MS165, IE=125A Busbar 25 mm² 125 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Busbar
Operating voltage
690 V
Cross section
25 mm²
Nominal current
125 A
Nominal current - rounded value
125 A
Datasheet (PDF)
Technical specifications
- Number of division units: 6.6
- Rated short-term current strength ICW: 100
- Rated surge voltage 8
- Suitable for number of devices: 2
- Suitable for devices with auxiliary switch: Yes
- Suitable for devices with N-conductor: No.
- Isolated: Yes
- Max. Rated operating voltage UE: 690
- Cross section: 25
- Division dimension: 18
- Conditional rated short-circuit current IQ: 100
- Rated continuous current IU: 125
- Electrical connection type: Pin
- Number of pins: 6
- Length 115
- Number of phases: 3
- Product type
Busbar
- Operating voltage
690 V
- Cross section
25 mm²
- Nominal current
125 A
- Nominal current - rounded value
125 A
- No. of partitions
18
- Content
1 pc(s)
- Length
115 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329756 ABB 1SAM401920R1002 PS2-2-0-125 3-phase busbar for 2 MS165, IE=125A Busbar 25 mm² 125 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2329756 ABB 1SAM401920R1002 PS2-2-0-125 3-phase busbar for 2 MS165, IE=125A Busbar 25 mm² 125 A 1 pc(s)
Description
PS2-2-0-125 3-phase busbar for 2 MS165, IE=125A
