ABB 1SBV016046R3801 LS21P46B11-U01 Door-operated switch 10 A Tappet IP67 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Door-operated switch
- Connection
Open end cable
- Operation type
Tappet
- Switching current (max.)
10 A
- Contact type
1 maker
1 breaker
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Cable length
1 m
- Thread size
M4
- Material
Plastic
- Width
30 mm
- Type
LS21P46B11-U01
- Content
1 pc(s)
- Dim
(L x W x H) 29 x 30 x 102 mm
- Height
102 mm
- Length
29 mm
- Depth
30 mm
Quick-break switch
3 A
0.27 A
Plastic
FALSE
Other
FALSE
None
With cable preassembled
None
None
Cuboid
IP67
FALSE
0
Plunger
None
FALSE
5.5 A
10 A
0.55 A
2.8 A
30 mm
0 mm
102 mm
29 mm
FALSE
-25-70 °C
1
1
0
Other
6
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3099294 ABB 1SBV016046R3801 LS21P46B11-U01 Door-operated switch 10 A Tappet IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3099294 ABB 1SBV016046R3801 LS21P46B11-U01 Door-operated switch 10 A Tappet IP67 1 pc(s)
Description

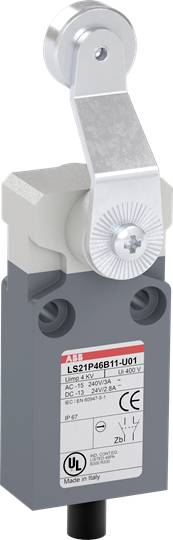

LS21P46B11-U01 is a 30 mm wide, compact position switch made of glass-fiber reinforced UL-V0 material, with 2 mounting holes M4 on the top, a pre-wired UL62 - PVC cable (1 m) on the side, a flattened metal roller pivot lever and 1 NO + 1 NC as spring contact
