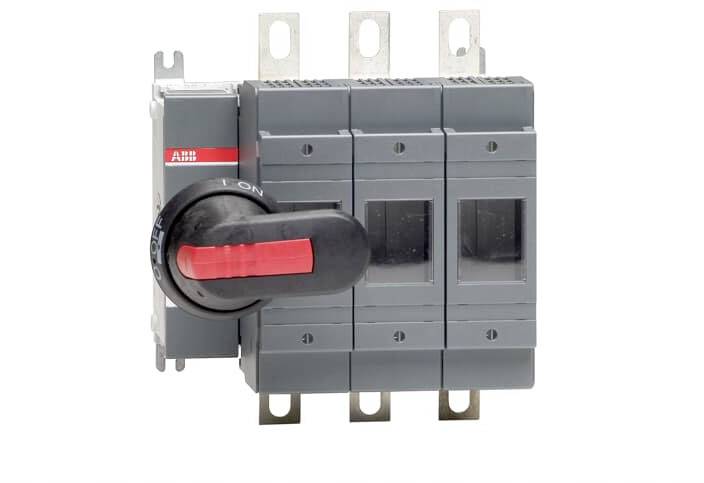

ABB 1SCA022709R9500 OS200D03P Circuit breaker Fuse size = 0 3-pin 200 A
Product type
Circuit breaker
Number of pins
3
Nominal current - rounded value
200 A
Fuse size
0
Nominal current
200 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Fuse size
0
- Nominal current - rounded value
200 A
- Nominal current
200 A
- Content
1 pc(s)
Other
200 A
3
80 kA
IP20
FALSE
Bolt connection
FALSE
Short thumb-grip
TRUE
FALSE
110 kW
2.5 kA
TRUE
690 V
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2318957 ABB 1SCA022709R9500 OS200D03P Circuit breaker Fuse size = 0 3-pin 200 A
User & Safety Instructions
User & Safety Instructions 2318957 ABB 1SCA022709R9500 OS200D03P Circuit breaker Fuse size = 0 3-pin 200 A
Description
ABB's OS series manual operated circuit breakers provide optimum protection for the most demanding applications. The OS series switches currents from 20 A to 1250 A and this at voltages up to 690 V AC. All OS switches have an integrated fuse chamber in which fuses of different types can be used. ABB offers different versions for different backup standards. Thanks to the modular design, the mechanism and the poles can be positioned according to the installation requirements. This enables high flexibility and efficiency in planning. In addition, the series has IEC and UL approvals. ABB offers a wide range of accessories for these switches, such as Extension shafts, handles, auxiliary switches and terminal covers. The OS switches are an ideal solution for motor protection and can be used in numerous other industrial applications as well as transformers.
